The push button box products are manufactured into diecasting aluminum. Products are light and strong. They have from no-hole to 4 holes (Ø22, Ø25, Ø30), so you can easily install the push button.
close
Ordering Information
- ① Product name : Aluminum Control Box
- ② hole size : No Hole / Ø22 / Ø25 / Ø30
- ③ The number of holes : 1hole / 2holes / 3holes / 4holes
Product feature
- UL approved product. (※The UL model is an order made.)
- Made of aluminum die-casting for robustness.
- There is a hole(Ø22 / Ø25 / Ø30) in the cover so that the switch can be installed without a separate process
- Certificates :
Product specifications
- Color : Base – black / Cover – Ivory
- Tolerance : ±1mm
- Operating Temperature : -20℃ ~ 180℃
- Hole size : 22mm /25mm /30mm
- Materials : Aluminum [ALDC 12.1]
| hole | Ø | Model | Size(mm) | Weight(g) | Pictures |

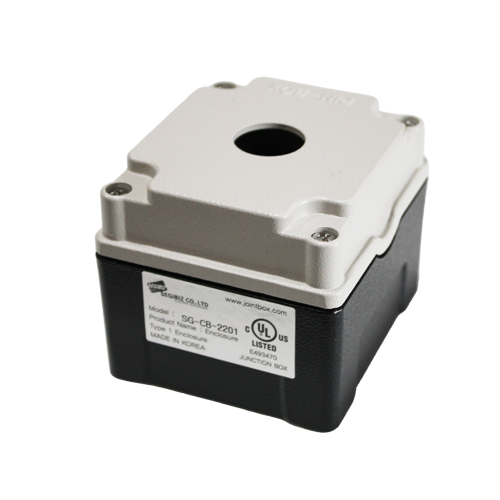

| 1hole | No Hole | SG-CB-0001 | 80 X 90 X 70 | 385g |
|
| Ø22 | SG-CB-2201 | ||||
| Ø25 | SG-CB-2501 | ||||
| Ø30 | SG-CB-3001 | ||||
| 2hole | No Hole | SG-CB-0002 | 80 X 135 X 70 | 481g |
|
| Ø22 | SG-CB-2202 | ||||
| Ø25 | SG-CB-2502 | ||||
| Ø30 | SG-CB-3002 | ||||
| 3hole | No Hole | SG-CB-0003 | 80 X 180 X 70 | 561g |
|
| Ø22 | SG-CB-2203 | ||||
| Ø25 | SG-CB-2503 | ||||
| Ø30 | SG-CB-3003 | ||||
| 4hole | No Hole | SG-CB-0004 | 80 X 220 X 70 | 686g |
|
| Ø22 | SG-CB-2204 | ||||
| Ø25 | SG-CB-2504 | ||||
| Ø30 | SG-CB-3004 |
