COMMON TERMINAL BLOCK JTB SERIES

Product Specification

PCB-less busbar type, rated up to 30A.

Integrated housing design minimizes the risk of short circuit and electric shock.

Stepped structure enables dual terminal wiring.

Snap-on mounting compatible with 35mm DIN rail. A marking strip can be inserted into the product cover for identification.

Materials : Screw [Steel + trivalent white plating] / Cover [PC(UL94 V-2)]
Body [PC(UL94 V-0)] / Hook [Acetal] / Conductive Plate [Brass + tin-plated]

Operating Temperature : -10 ~ 50°C

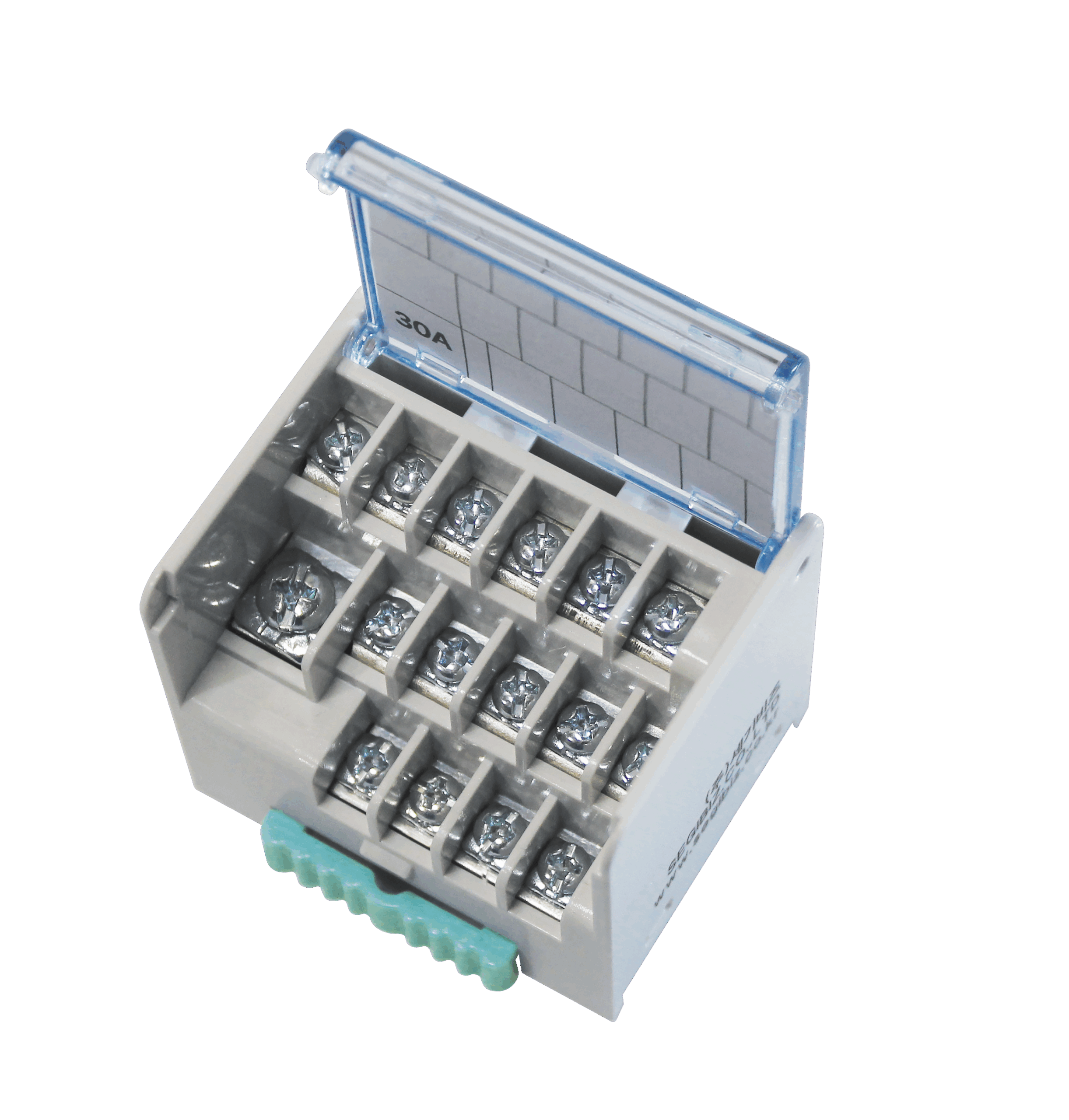

The JTB series is a PCB-free busbar-type common terminal block available in 15P, 18P, and 30P.
Snap-on mounting compatible with 35mm DIN rail, with a marking strip insertable into the groove of the push section for identification.

Product Video

• Common Terminal Block

Ordering Information

① Product name : Common Terminal Block
② No. of terminal poles : 15P,18P,30P

Common Specification

Model		JTB-15P	JTB-18P	JTB-30P
Rated voltage		AC, DC250V
Rated current		30A(Total)
No. of terminal blocks	Input	1ea	18ea(9+9)	30ea(15+15)
No. of terminal blocks	Output	15ea	18ea(9+9)	30ea(15+15)
Suitable wire	Input	AWG 16~14
Suitable wire	Output	AWG 20~16
Insulation resistance		100㏁ or more(DC500V)
Withstand voltage		1,500V AC / 1min
Terminal screw	Input	M4 X 9	–
Terminal screw	Output	M3 X 7
Screw torque	Input	14Kgfㆍcm (1.4Nㆍm)
Screw torque	Output	7 ~ 8Kgfㆍcm (0.68 ~ 0.78Nㆍm)
Environment resistant	Ambient temperature	-10 ~ 50℃
Environment resistant	Ambient humidity	35 ~85%RH
Material	Screw	Steel + trivalent white plating
	Cover	PC (UL94 V-2)
	Body	PC (UL94 V-0)
	Hook	Acetal
	Conductive Plate	Brass + Tin-plated
Weight		About 61.5g	About 62g	About 96g
