Earth Bar
Earth bars are non-plated or tin-plated products made of 99.9% copper, and
can be divided into various types: single file, double file, 3P to 30P. They
are manufactured to support the safe grounding of electric facilities.
Materials: copper 99.9% / Tin-plated
Volts Size : M5(Single-file) / M4 (Double,Triple-file)
Certificates :
Other custom-made products available on request.
Earth bars are non-plated or tin-plated products made of 99.9% copper, and can be divided into various types: single file, double file, 3P to 30P. They are manufactured to support the safe grounding of electric facilities.

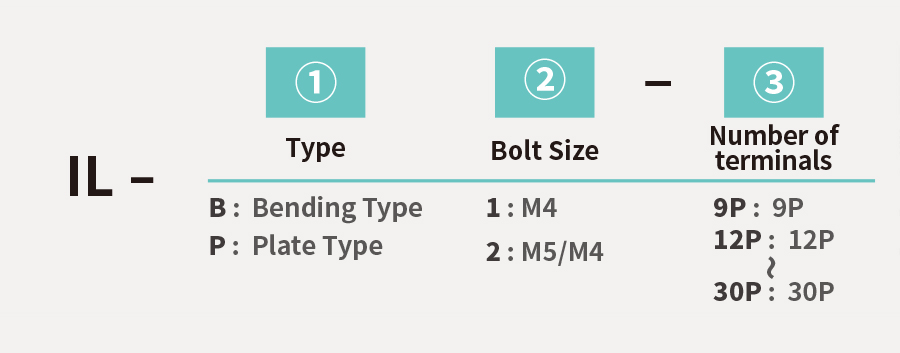

Ordering Information
Product specifications
IL-EB
Model
Size(mm)
Weight(g)
A
B
Width
Thickness (T)
IL-EB-3P
92
75
15
3
43.5
IL-EB-4P
107
90
50.5
IL-EB-5P
122
105
59.5
IL-EB-6P
137
120
67.5
IL-EB-7P
152
135
76
IL-EB-8P
167
150
83
IL-EB-10P
197
180
97
IL-EB-12P
227
210
112
IL-EB-15P
272
255
136
IL-EB-20P
347
330
176
IL-EB2
Model
Size(mm)
Weight(g)
A
B
Width
Thickness(T)
IL-EB2-6P
99
82
25
3
81
IL-EB2-8P
114
97
93
IL-EB2-10P
129
112
107
IL-EB2-12P
144
127
119
IL-EB2-16P
174
157
144
IL-EB2-20P
204
187
172
IL-EB2-24P
234
217
195
IL-EB2-30P
279
262
235
IL-EB3
Model
Size(mm)
Weight(g)
A
B
Width
Thickness(T)
IL-EB3-6P
99
82
25
3
72
IL-EB3-8P
114
97
86
IL-EB3-10P
129
112
99
IL-EB3-12P
144
127
109
IL-EB3-16P
174
157
138
IL-EB3-20P
204
187
163
IL-EB3-24P
234
217
189
IL-EB3-30P
279
262
229
IL-B1
Model
Size(mm)
Weight(g)
A
B
Width
Thickness(T)
IL-B1-9P
99
82
35
3
106
IL-B1-12P
114
97
122
IL-B1-15P
129
112
138
IL-B1-18P
144
127
155
IL-B1-21P
159
142
172
IL-B1-24P
174
157
187
IL-B1-27P
189
172
202
IL-B1-30P
204
187
220
IL-B2
Model
Size(mm)
Weight(g)
A
B
Width
Thickness(T)
IL-B2-9P
99
82
35
3
111
IL-B2-12P
114
97
127.5
IL-B2-15P
129
112
145
IL-B2-18P
144
127
162
IL-B2-21P
159
142
180
IL-B2-24P
174
157
197
IL-B2-27P
189
172
214
IL-B2-30P
204
187
232
IL-P1
Model
Size(mm)
Weight(g)
A
B
Width
Thickness(T)
IL-P1-9P
99
82
35
3
96
IL-P1-12P
114
97
111
IL-P1-15P
129
112
128
IL-P1-18P
144
127
144
IL-P1-21P
159
142
156
IL-P1-24P
174
157
176
IL-P1-27P
189
172
191
IL-P1-30P
204
187
209
IL-P2
Model
Size(mm)
Weight(g)
A
B
Width
Thickness(T)
IL-P2-9P
99
82
35
3
99.5
IL-P2-12P
114
97
116.5
IL-P2-15P
129
112
134
IL-P2-18P
144
127
152
IL-P2-21P
159
142
169
IL-P2-24P
174
157
187
IL-P2-27P
189
172
204
IL-P2-30P
204
187
221
