AUS SeriesSemicircular Side Mount LED Signal Tower Light
- Semicircular wall attachment with small protrusions to minimize damage with slim protrusions
- Clear color with internal transparent lens and external colored diffusion lens
- IP55 structure allows outdoor use
- Installation of buzzer holes facing down
- There are two types of the main body, silver or regular ivory
- Audible Option : buzzer ( Steady – long sound (beep~), Steady/flashing – long sound (beep~), short sound (beep-beep) ) / Max. 85 dB
- Material : Grobe [PC], Lens [PC], Body [ABS]
- Operating Temperature : -20 ~ 50°C (freezing free)

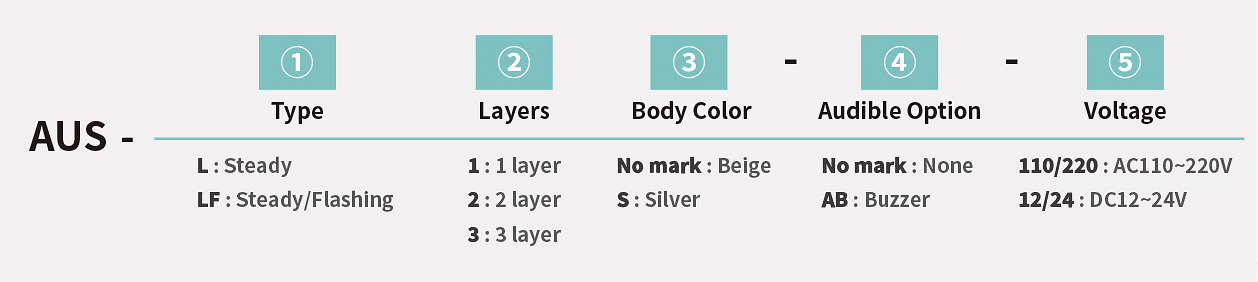

Nomenclature
Product specifications
AUS-L / AUS-LF
- Audible Option : Buzzer 2 sound
- Color
1 Layer : (1 layer) Red (R) ● Yellow (Y) ● Green (G) ●
2 Layer : (1 layer) Red (R) ● (2 layer) Green (G) ●
3 Layer : (1 layer) Red (R) ● (2 layer) Yellow (Y) ● (3 layer) Green (G) ●
| Type | Layer | Voltage | Current | Weight | Color |
|
AUS-BL/SL AUS-BLF/SLF |
1 | AC110V / AC220V | 0.088A / 0.058A | 330g | R, Y, G – Red, Yellow, Green |
| DC12V / DC24V | 0.390A / 0.190A | 290g | |||
| 2 | AC110V / AC220V | 0.028A / 0.020A | 330g |
1 layer – Red 2 layer – Green |
|
| DC12V / DC24V | 0.060A / 0.110A | 350g | |||
| 3 | AC110V / AC220V | 0.028A / 0.020A | 340g |
1 layer – Red 2 layer – Yellow 3 layer – Green |
|
| DC12V / DC24V | 0.086A / 0.145A | 360g |
Technical Diagram
Mounting method / Mounting hole specifications
- The mounting hole formed in this product is 4-Ø4.2mm. (M4 bolt)
- When installing the product, install the buzzer hole toward the floor.
- When installing, insert the bolt through the machined hole and then tighten the flange nut from the opposite side of the mounting surface.
- Insert the LOCK under the cover first, then press it with the until it clicks.
Wiring diagram
