AUT-40L / LF SeriesØ40 Signal Design Tower Light
- LED Steady / Flashing signal tower Light
- High brightness LEDs are placed in all four directions and transparent PC cover is used for excellent divergence
- This can be wired with transistor(PNP Type), so it can be used in PLC, etc
- 5 body color options (Black, Yellow, Ivory, Orange and Silver)
- Wiring cable withdrawal type, individual color cannot be changed
- External diameter : Ø40 / Max. 90dB
- Installation bolt : 4mm, Direct connection
- Material : Lens [PC], Body [PC]
- Operating temperature : -25 ~ 50°C (freezing free)
- Certificates :
Product specifications
AUT-40Ø40 Signal Design Tower Light
| Model | Layer | Voltage | Height (mm) | Weight (g) | Color |
| AUT-40-3 | 3 | DC24V | 260 | 195 |
(1 layer)●Red (2 layer)●Yellow (3 layer)●Green |
| AUT-40-5 | 5 | 330 | 230 |
(1 layer)●Red (2 layer)●Yellow (3 layer)●Green (4 layer)●Blue (5 layer)○ White |

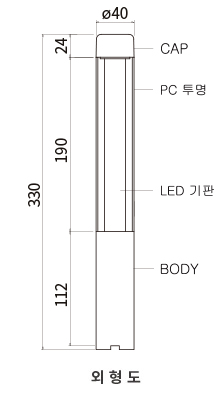

Technical Diagram & Wiring Instructions
data
