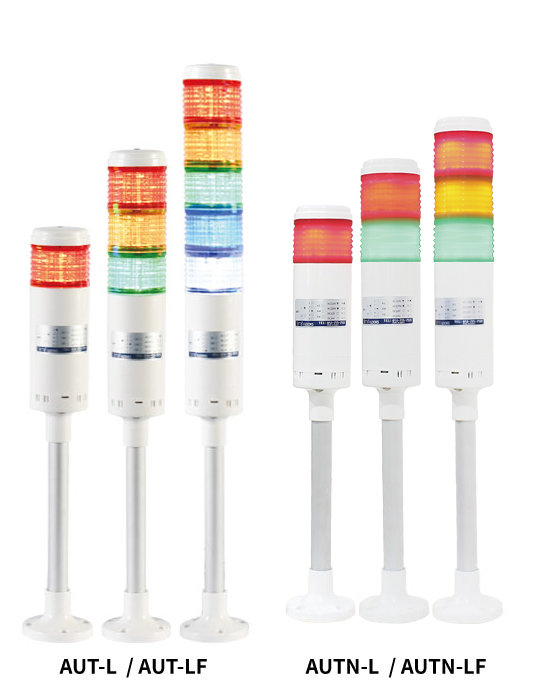

AUT-L / AUT-LF SeriesLED Steady / Flashing type Signal Tower Light
- LED Steady / Flashing type Signal Tower Light
- Excellent radiant effect achieved using special vacuum metallizing reflector together
with high luminance LED - Operators can change color of each layer
- Color combinations other than standard
- Built-in 8 melodies and notification sounds (basic 4 notes)
- Volume can be adjusted from the outside (Max. 85dB)
- Mounting pole (length, type) are selectable (default SH20)
- Magnet mounted type is available for horizontal pole (SH)
- External diameter : Ø58
- Material : Lens [GPPS], Body [ABS], Reflector [PC], Pole [Al]
- Operating Temperature : -25℃ ~ 50℃ (freezing free)
- ※ Default wire length : 1m
- ※ Use contact-type products when extending more than 10m cable
- Certificates :
Nomenclature
AUT-L / AUT-LF Product specifications
| Type | Layer | Voltage | Current | Weight | Color | |
| LED | Audible Option | |||||
| AUT-L Steady type |
1 | AC110~220V | 12.5mA | 15mA | 348g | (1 layer)●Red |
| DC12V | 40mA | 210mA | 312g | |||
| DC24V | 50mA | 170mA | ||||
| 2 | AC110~220V | 25mA | 15mA | 385g | (1 layer)●Red (2 layer)●Green |
|
| DC12V | 80mA | 210mA | 349g | |||
| DC24V | 100mA | 170mA | ||||
| 3 | AC110~220V | 37mA | 15mA | 422g | (1 layer)●Red (2 layer)●Yellow (3 layer)●Green |
|
| DC12V | 110mA | 210mA | 386g | |||
| DC24V | 135mA | 170mA | ||||
| 4 | AC110~220V | 49mA | 15mA | 459g | (1 layer)●Red (2 layer)●Yellow (3 layer)●Green (4 layer)●Blue |
|
| DC12V | 140mA | 210mA | 423g | |||
| DC24V | 170mA | 170mA | ||||
| 5 | AC110~220V | 61mA | 15mA | 496g | (1 layer)●Red (2 layer)●Yellow (3 layer)●Green (4 layer)●Blue (5 layer)○ White |
|
| DC12V | 170mA | 210mA | 460g | |||
| DC24V | 205mA | 170mA | ||||
| AUT-LF Flashing Type |
1 | AC110~220V | 13mA | 15mA | 388g | (1 layer)●Red |
| DC12V | 65mA | 210mA | 332g | |||
| DC24V | 65mA | 170mA | ||||
| 2 | AC110~220V | 26mA | 15mA | 425g | (1 layer)●Red (2 layer)●Green |
|
| DC12V | 130mA | 210mA | 369g | |||
| DC24V | 130mA | 170mA | ||||
| 3 | AC110~220V | 38.5mA | 15mA | 462g | (1 layer)●Red (2 layer)●Yellow (3 layer)●Green |
|
| DC12V | 180mA | 210mA | 406g | |||
| DC24V | 185mA | 170mA | ||||
| 4 | AC110~220V | 51mA | 15mA | 499g | (1 layer)●Red (2 layer)●Yellow (3 layer)●Green (4 layer)●Blue |
|
| DC12V | 230mA | 210mA | 443g | |||
| DC24V | 240mA | 170mA | ||||
| 5 | AC110~220V | 63.5mA | 15mA | 536g | (1 layer)●Red (2 layer)●Yellow (3 layer)●Green (4 layer)●Blue (5 layer)○ White |
|
| DC12V | 280mA | 210mA | 480g | |||
| DC24V | 295mA | 170mA | ||||

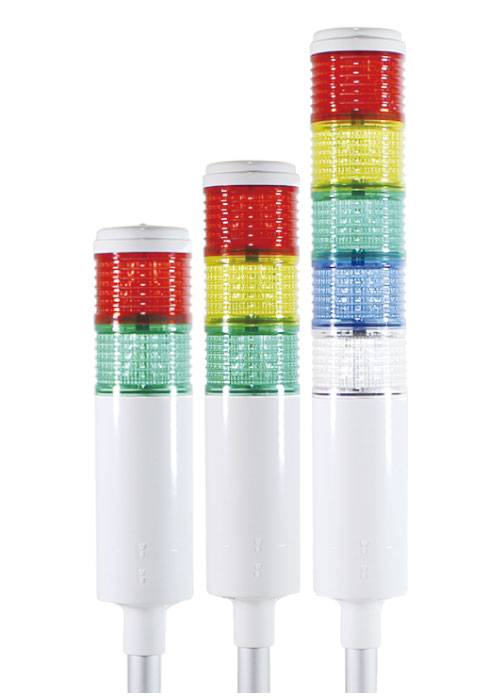

AUTN-L / AUTN-LF SeriesLED Steady / Flashing type Signal Tower Light
- LED Steady / Flashing type Signal Tower Light
- Excellent radiant effect achieved using special vacuum metallizing
- Operators can change color of each layer
- Apart from the standard buzzer, 8 different melodies can be installed
- For melody / Alarm type, different sounds can be applied to each of up to 4 layers
- Volume can be adjusted from the outside / Max. 85dB
- Outer diameter : Ø58 / Mounting pole (length, type) are selectable (default SH20)
- Material : Lens [GPPS], Body [ABS], Reflector [PC], Pole [Al]
- Operating Temperature : -25℃ ~ 50℃
- PC light diffusion lens is used. When not in operation, it maintains a translucent milky white color. When in operation, light passes through the light diffusion lens in the LED’s unique color, emitting a soft and luxurious light.
- The same specifications as the AUT-L / AUT-LF series can be ordered.
- ※ Default wire length : 1m
- ※ When extending the cable over 10m, select and use a contact type product.
- Certificates :
AUTN-L / AUTN-LF Product specifications
| Type | Layer | Voltage | Current | Weight | Color | |
| LED | Audible Option | |||||
| AUTN-L Steady type |
1 | AC110~220V | 12.5mA | 15mA | 348g | (1 layer)●Red |
| DC12V | 40mA | 210mA | 312g | |||
| DC24V | 50mA | 170mA | ||||
| 2 | AC110~220V | 25mA | 15mA | 385g | (1 layer)●Red (2 layer)●Green |
|
| DC12V | 80mA | 210mA | 349g | |||
| DC24V | 100mA | 170mA | ||||
| 3 | AC110~220V | 37mA | 15mA | 422g | (1 layer)●Red (2 layer)●Yellow (3 layer)●Green |
|
| DC12V | 110mA | 210mA | 386g | |||
| DC24V | 135mA | 170mA | ||||
| 4 | AC110~220V | 49mA | 15mA | 459g | (1 layer)●Red (2 layer)●Yellow (3 layer)●Green (4 layer)●Blue |
|
| DC12V | 140mA | 210mA | 423g | |||
| DC24V | 170mA | 170mA | ||||
| 5 | AC110~220V | 61mA | 15mA | 496g | (1 layer)●Red (2 layer)●Yellow (3 layer)●Green (4 layer)●Blue (5 layer)○ white |
|
| DC12V | 170mA | 210mA | 460g | |||
| DC24V | 205mA | 170mA | ||||
| AUTN-LF Flashing Type |
1 | AC110~220V | 13mA | 15mA | 388g | (1 layer)●Red |
| DC12V | 65mA | 210mA | 332g | |||
| DC24V | 65mA | 170mA | ||||
| 2 | AC110~220V | 26mA | 15mA | 425g | (1 layer)●Red (2 layer)●Green |
|
| DC12V | 130mA | 210mA | 369g | |||
| DC24V | 130mA | 170mA | ||||
| 3 | AC110~220V | 38.5mA | 15mA | 469g | (1 layer)●Red (2 layer)●Yellow (3 layer)●Green |
|
| DC12V | 180mA | 210mA | 406g | |||
| DC24V | 185mA | 170mA | ||||
| 4 | AC110~220V | 51mA | 15mA | 499g | (1 layer)●Red (2 layer)●Yellow (3 layer)●Green (4 layer)●Blue |
|
| DC12V | 230mA | 210mA | 443g | |||
| DC24V | 240mA | 170mA | ||||
| 5 | AC110~220V | 63.5mA | 15mA | 536g | (1 layer)●Red (2 layer)●Yellow (3 layer)●Green (4 layer)●Blue (5 layer)○ white |
|
| DC12V | 280mA | 210mA | 480g | |||
| DC24V | 295mA | 170mA | ||||
User Order Specifications
| Warning sound | Audible Option | Channel | Tone |
|---|---|---|---|
| AM Melody | Melody 4sounds | 1 | Fur Elise |
| 2 | Home Sweet Home | ||
| 3 | The Magic Flute | ||
| 4 | Piano Sonatas | ||
| AA Alarm | Alarm 4sounds | 1 | beep ~ beep ~ beep |
| 2 | Ding Dong | ||
| 3 | beep-ee | ||
| 4 | beep beep beep beep |
Accessories
- The direct vertical type is available in the case of the direct (G) type
- In the case of the horizontal rod type, a magnet can be attached to the bottom
| Horizontal (SH) | Vertical (SV) | Nut type (SN) | Direct connection (G) | Direct vertical (DV) | Adjusting the angle (AP) |
|---|---|---|---|---|---|
| Pole length : 200mm(SH20) Pole length : 80mm(SH08) Pole length : 40mm(SH04) |
Pole length : 200mm(SV20) Pole length : 60mm(SV06) | Pole length : 200mm(SN20) Pole length : 60mm(SN06) | – | – | Pole length : 200mm(AP20) Pole length : 60mm(AP06) |
 |
 |
 |
 |
 |
 |
