NFB Power Distribution Terminal Block

  View Catalog

  • Capacity 100A / 200A /400A available.
  • 100A can be used in common with 50A circuit breakers.
  • There are 4P / 6P / 8P.
  • Easy to work with direct link to main breaker.
  • Hinged protective cover prevents accidents such as electric shock in advance.
  • Space customized product with the same width as the breaker frame.
  • Customers can choose the wrench bolts option as the output bolts to obtain the use stability.
  • Certificates : ROHS

NFB terminal block type power distributor is an upgraded product of terminal block type power distributor. There is a link that can be directly connected to the main breaker, so it can be connected without the need for a separate terminal. The width of the product is the same as that of the breaker frame, so it can be used efficiently because it can save space. Heat-resistant material side plate is used to resist shock and heat, and PC material protection cover prevents electric shock and is designed for safe use. The busbar is coated with 99.9% copper with tin, so it has a higher conductivity than brass, so it can be used efficiently.

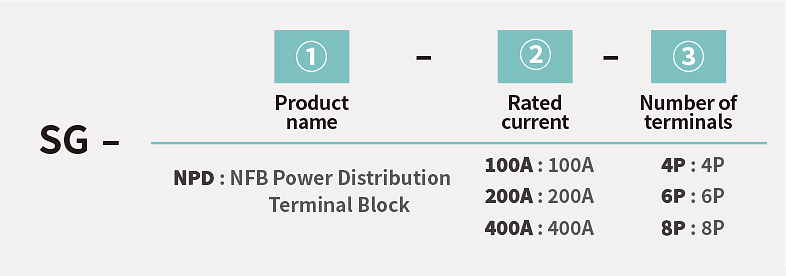

Ordering Information

Product specifications
  • Rated current : 100A (Available with 50A breaker) / 200A / 400A
  • Pitch : 20mm / 30mm / 40mm
  • Rated voltage : 600V
  • Tolerance : ±1mm
  • Operating Temperature : -20℃ ~ 110℃
  • Materials : Side plate [MPPO] / Cover [PC]
    99.9% Copper + Tin plated busbar



SG-NPD-100A
Model SG-NPD-100-4P SG-NPD-100-6P
Rated voltage / current 600V / 100A
Pitch 20mm
IN Screw Hole Ø9
OUT Screw M4 X 2 , M5 X 2 M4 X 6
Busbar Size 3T X 20mm
Product Size 25mm x 93mm x 58mm
Mounting Size & hole 12.4mm / Ø4.5
Weight(g) 96g
Videos View Video View Video
SG-NPD-200A
Model SG-NPD-200-4P SG-NPD-200-6P SG-NPD-200-8P
Rated voltage / current 600V / 200A
Pitch 30mm
IN Screw Hole Ø9
OUT Screw M5 X 2 , M6 X 2 M5 X 6 M4 X 6 , M5 X 2
Busbar Size 3T X 30mm
Product Size 35mm x 99mm x 58mm
Mounting Size & hole 17.4mm / Ø4.5
Weight(g) 140g
Videos View Video View Video View Video

※ Available up to 250A

SG-NPD-400A
Model SG-NPD-400-6P SG-PD-400-8P
Rated voltage / current 600V / 400A
Pitch 40mm
IN Screw Hole Ø12.5
OUT Screw M8 X 6 M8 X 2 , M6 X 6
Busbar Size 4T X 40mm
Product Size 45mm x 173mm x 83mm
Mounting Size & hole 22.3mm / Ø5.5
Weight(g) 397g 382g
Videos View Video View Video
