We manufacture various types of socket boxes using aluminum profile boxes.
Product Detail
Breaker Type Mobile Industrial Socket Box
View Catalog- ① Product name :Breaker Type Mobile Industrial Socket Box
- ② Breaker type : N – Rated breaking
- ③ Color : Yellow
- ④Material : Steel
- ⑤Voltage / Current : AC460V / 30A
- ⑦Tolerance : ± 1mm
- ⑧Operating temperature : -20℃ ~70℃
※ Can be customized
※ The socket type can be changed by the customer.※ 30A, 50A, 60A
※ Single or Three – phase types can be customized.
| Portable Power Supply | ||
| Box | Size | 300(W) X 520(H) X 300(D)mm |
| Thickness / Weight | 1.6T / 19kg | |
| Circuit breaker | Type | ELB-3P (2ea) |
| Breaking Capacity | 2.5kA | |
| Socket | Type | 406506V (4P16) |
| EA | 4 | |
| Voltage | 380-415V | |
| Current | 16A | |
| Protection Rating | IP44 | |
Aluminum Profile Industrial Socket Box ELB Type
- ① Product name : Multi Socket Box
- ② Breaker type : N – Rated breaking
- ③ The number of socket : 2Sockets
- ④ leading-in : S – single-phase / T – three-phase
- ⑤ Socket Size : S – Small(404030ST06) / L – Large(406502V)
- ⑥ current : 30A / 50A / 60A
| Single-phase 220V | ||||
| SG-MC-N-02-SS (30A) | SG-MC-N-02-SL (30A) | SG-MC-N-02-S (60A) | ||
| Box | Size | 70 X 70 X 310 mm | 90 X 70 X 420 mm | 90 X 70 X 420 mm |
| Thickness | 1.4 t | 1.4 t | 1.4 t | |
| Circuit breaker | Sortation | ELB-2P | ELB-2P | ELB-2P |
| Rated voltage | AC220 V | AC220 V | AC220 V | |
| Rated current | 30 A | 30 A | 60 A | |
| Rated cut-off current | 2.5 kA | 5 kA | 5 kA | |
| Socket | Sortation | 404030ST06 (2P16) | 406502V (3P16) | 406514V (4P32) |
| Quantity | 2ea | 2ea | 2ea | |
| Voltage | 220 – 240 V | 220 – 250 V | 220 – 250 V | |
| Current | 16 A | 16 A | 32 A | |
| Protection rating | IP54 | IP44 | IP44 | |
| Three-phase 380V | ||||
| SG-MC-N-02-T (30A) | SG-MC-N-02-T (50A) | SG-MC-N-02-T (60A) | ||
| Box | Size | 90 X 70 X 420 mm | 90 X 70 X 420 mm | 90 X 70 X 420 mm |
| Thickness | 1.4 t | 1.4 t | 1.4 t | |
| Circuit breaker | Sortation | ELB-3P | ELB-3P | ELB-3P |
| Rated voltage | AC460 V | AC460 V | AC460 V | |
| Rated current | 30 A | 50 A | 60 A | |
| Rated cut-off current | 2.5 kA | 2.5 kA | 2.5 kA | |
| Socket | Sortation | 406506V (4P16) | 406506V (4P16) / 406518V (4P32) | 406518V (4P32) |
| Quantity | 2ea | 1ea / 1ea | 2ea | |
| Voltage | 380 – 415 V | 380 – 415 V | 380 – 415 V | |
| Current | 16 A | 16 A / 32 A | 32 A | |
| Protection rating | IP44 | IP44 | IP44 | |
Aluminum Profile Industrial Socket Box
View Catalog
- ① Product name : Multi socket Box
- ② The number of Socket : 1 ~ 4sockets
- ③ Industrial Socket NO : 406502V / 406506V
| Model | Size(mm) | ||
| Width | Height | length | |
SG-MC-01 SG-MC-02 SG-MC-03 SG-MC-04 |
90 | 70 | 140 |
| 250 | |||
| 360 | |||
| 470 | |||
Aluminum Profile Socket Box
- ① Product name : Multi socket Box
- ② The number of Socket :1~ 6 sockets
Product Specification
Color : Body – Gray / Side plate – Orange
Voltage/current : AC 220V~240V /16A
Tolerance : ± 1mm
Operating Temperature : -20℃ ~70℃
※Custom-made available

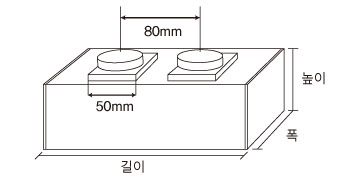

| Model | Size(mm) | ||
| Width | Height | length | |
| SG-MC-01 | 70 | 50 | 108 |
| SG-MC-02 | 70 | 50 | 188 |
| SG-MC-03 | 70 | 50 | 268 |
| SG-MC-04 | 70 | 50 | 348 |
| SG-MC-05 | 70 | 50 | 428 |
| SG-MC-06 | 70 | 50 | 508 |
| SG-MC-07 | 70 | 50 | 588 |
| SG-MC-08 | 70 | 50 | 688 |
- ① Product name : Multi socket Box

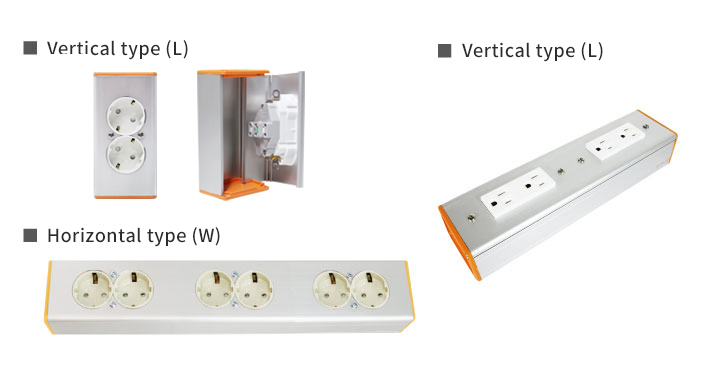

- ② Socket direction : (W)Horizontal / (L)Vertical
- ③ The number of socket : 2 / 4 / 6 / 8 / 10 / 12 / 14 / 16 / 18 sockets
Product Specification
Color : Body – Gray (Anodizing) / Side plate – Orange
Tolerance : ± 1mm
Operating Temperature : -20℃ ~70℃
※ Socket for 110V/220V available / Custom-made available
| Model | Size(mm) | ||
| Width | Height | length | |
| SG-MCL(W)-02 | 70 | 50 | 141 |
| SG-MCL(W)-04 | 70 | 50 | 276 |
| SG-MCL(W)-06 | 70 | 50 | 411 |
| SG-MCL(W)-08 | 70 | 50 | 546 |
| SG-MCL(W)-10 | 70 | 50 | 681 |
| SG-MCL(W)-12 | 70 | 50 | 816 |
| SG-MCL(W)-14 | 70 | 50 | 951 |
| SG-MCL(W)-16 | 70 | 50 | 1086 |
| SG-MCL(W)-18 | 70 | 50 | 1221 |
Aluminum Profile Socket Box Sloped Type
View Catalog
- ① Product name : Multi Pentagon socket Box
- ② The number of socket : 1 ~ 8 sockets
Product Specification
Color : Body – Gray (Anodizing) / Side plate – Orange /socket – Blue
Voltage / current : AC 220V ~ 240V / 16A
Materials : Aluminum / ABS (Side plate)
Tolerance : ± 1mm
Operating Temperature : -20℃ ~ 70℃
Tilt angle : 22˚
※ Custom-made available
| Model | Size(mm) | ||
| Width | Height | length | |
| SG-MP-01 | 70 | 70 | 108 |
| SG-MP-02 | 70 | 70 | 188 |
| SG-MP-03 | 70 | 70 | 268 |
| SG-MP-04 | 70 | 70 | 348 |
| SG-MP-05 | 70 | 70 | 428 |
| SG-MP-06 | 70 | 70 | 508 |
| SG-MP-05 | 70 | 70 | 428 |
| SG-MP-06 | 70 | 70 | 508 |
| SG-MP-07 | 70 | 70 | 588 |
| SG-MP-08 | 70 | 70 | 668 |
- ① Product name : Multi Pentagon Socket Box
- ② socket direction : Horizontal (W) / Horizontal (L)
- ③ The number of socket : 2 / 4 / 6 / 8 / 10 / 12 / 14 / 16 / 18 sockets
Product Specification
Color : Body – Gray (Anodizing) / Side plate – Orange
Materials : Aluminum Profile / ABS ( Side plate )
Tolerance : ± 1mm
Operating Temperature : -20℃ ~ 70℃
Tilt angle : 22˚
※ Custom-made available
| Model | Size(mm) | ||
| Width | Height | length | |
| SG-MPW-02 | 70 | 70 | 141 |
| SG-MPW-04 | 70 | 70 | 276 |
| SG-MPW-06 | 70 | 70 | 411 |
| SG-MPW-08 | 70 | 70 | 546 |
| SG-MPW-10 | 70 | 70 | 681 |
| SG-MPW-12 | 70 | 70 | 816 |
| SG-MPW-14 | 70 | 70 | 951 |
| SG-MPW-16 | 70 | 70 | 1086 |
| SG-MPW-18 | 70 | 70 | 1221 |
