The aluminum terminal box is an integral junction box with terminals located inside the box. Our aluminium terminals are manufactured from aluminum with a standard rating of 10 Amp to 250 V and painted in exterior gray. Aluminium terminal boxes are packed with polyurethane gasket foaming, just like our aluminum boxes, providing excellent waterproof and dust proofing and are used in a wide range of industrial machinery, robotics, commercial wiring and low voltage control systems.

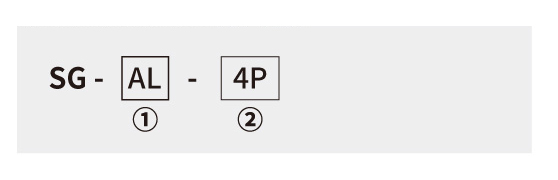

Nomenclature
  • Product name : Aluminum Terminal Box
  • The number of pin : 4-50 Pin



Product feature
  • All-in-one type with various sizes and types of terminals.
  • Polyurethane foaming is effective in waterproofing and dust proof, and is highly productive and efficient
  • Certificates : CE TUV ROHS
View Catalog

Product specifications
  • Color : Gray
  • Tolerance : ±1mm
  • Thickness : 3.5t ~ 4t
  • Operating temperature : -20 ~ 70℃
  • Protection rating : IP67 / IK10
  • Materials : Aluminum [ALDC 12.1], Terminal Block [ABS]
  • Allowable current : 10A
  • Rated frequency : 50Hz
  • Rated input voltage : AC250V
  • Internal voltage: 1880V / 1minute
Model Size(mm) Weight(g) Pictures Videos
SG-AL-4P 61 X 71 X 48 239 View Pictures View Videos
SG-AL-6P 70 X 93 X 52 283 View Pictures View Videos
SG-AL-10P 70 X 128 X 52 374 View Pictures View Videos
SG-AL-12P 110 X 110 X 52 482 View Pictures View Videos
SG-AL-15P 70 X 172 X 55 529 View Pictures View Videos
SG-AL-20P 125 X 145 X 62 669 View Pictures View Videos
SG-AL-20PT 80 X 235 X 80 957 View Pictures View Videos
SG-AL-30P 125 X 190 X 80 1205 View Pictures View Videos
SG-AL-40P 161 X 263 X 90 1822 View Pictures View Videos
SG-AL-50P-S 161 X 263 X 90 2447 View Pictures View Videos
SG-AL-50P-L 230 X 330 X 120 5237 View Pictures View Videos
CAD Download
