AUW – L150SMultiple Function LED Warning Light
- Ø150mm Standard multi-function LED warning light SUS body
- It is lightweight, impact resistant, and has a stainless (SUS304) structure, using a polystyrene grove with special joules, and has excellent corrosion resistance
- The multi-functional LED warning light uses a built-in microchip to select four operations: lighting, rotation, rotation-flashing, and flashing.
- Suitable for use in places with severe vibration or difficult to change light bulbs
- Excellent radiant effect using high luminance LED elements
- Semi-permanent lifespan using electronic circuit board
- Can be adjusted between AC110V ↔ 220V by adjusting pins on the inner board of the product
- Two types of LED brightness: standard and high brightness
- Material : Globe [GPPS] / Body [SUS304]
- Operating Temperature :-25℃ ~ 50℃
- Default wire length: 300mm

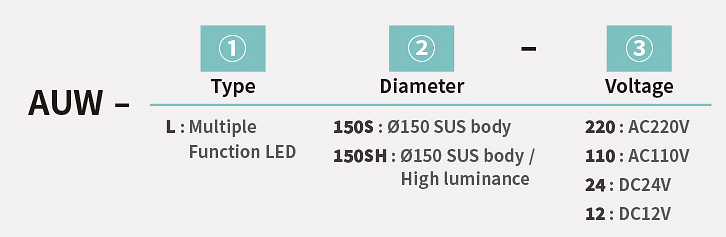

Nomenclature
Product specifications
AUW-L150S(G)
AUW-L150S
- Ø150mm standard Multiple Function LED Warning Light
- Color : Red (R) ● Orange (O) ● Green (G) ● Blue (B) ●
| MODEL | Rated Voltage | Current consumption | LED EA | Weight(g) |
|---|---|---|---|---|
| AUW-L150S | AC 110V | 0.09 (A) | 54EA | 1179 g |
| AC 220V | 0.04 (A) | 54EA | 1179 g | |
| DC 12V | 0.26 (A) | 54EA | 880 g | |
| DC 24V | 0.32 (A) | 54EA | 880 g |
| MODEL | Rated Voltage | Current consumption | LED EA | Weight(g) |
|---|---|---|---|---|
| AUW-L150SH high luminance |
AC 110V | 0.11 (A) | 90EA | 1202 g |
| AC 220V | 0.06 (A) | 90EA | 1202 g | |
| DC 12V | 0.43 (A) | 90EA | 903 g | |
| DC 24V | 0.51 (A) | 90EA | 903 g |
How to Adjust the LED DIP Switches
DIP switches
Operate 4 kinds of function by dip switches steady / flashing-revolving / flashing / revolving
| DIP / SW | 1 2 |
1 2 |
1 2 |
1 2 |
|---|---|---|---|---|
| ON | ■ |
■ |
■ ■ |
|
| OFF | ■ ■ |
■ |
■ |
|
| DIP |  |
 |
 |
 |
| Operation |  steady |
 Revolving |
 flashing-Revolving |
 flashing |
Technical Diagram
Product wiring diagram
