AUMS Series
Heavy Duty Industrial Warning Light
Wall mounted Warning Light & Electronic Horn Combinations for Heavy Industry Applications
- Wall mounted model configured with heavy duty industrial integral Warning Light & Electronic Horn
- Tone is changeable conveniently with the switch
- Suitable for outdoor, shipping, and heavy industry with completely waterproofed structure
- Convenient line connection with the terminal box
- Material : Body [ Aluminum (AC7A) ] , Globe [ GPPS, PC ] Electronic Horn [ ABS ]
- Standard body color : MUNSELL NO. 7.5G / 7.2
- Operating Temperature : -25℃ ~ 50℃

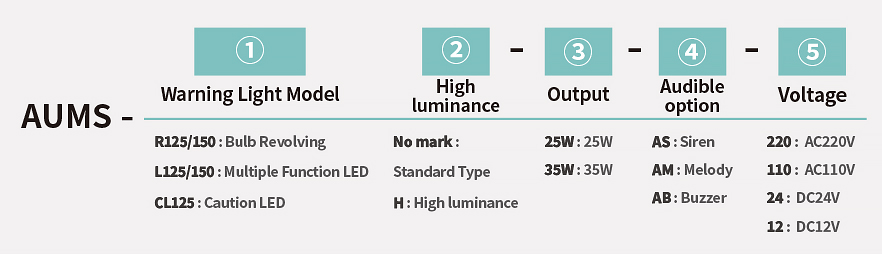

Nomenclature
Icon Description and Product Diagram
| Icon Description | |||
| Light Source | Operation | Sound | Option |
|
|
|
|
Maximum volume
Voice
Magnet mounted typeAUMS Series Common Specifications
1 A Variety of Selectable Light Source
& Function Combinations
| Light Source & Function | Globe Outer Diameter |
 Bulb Revolving |
125mm
150mm |
Multiple Function LED
( Steady / Flashing / Revolcing / Flashing-revolving ) |
|
 Caution LED |
125mm |
2 Audible Option Selection
◎ Three tones can be used to suit the purpose: siren, melody, and buzzer.
| Volume | Channel | Audible option | |
| Max. 115dB | CH 1 | Siren AS | Fire |
| CH 2 | Emergency | ||
| CH 3 | Urgent | ||
| CH 1 | Melody AM | The Magic Flute | |
| CH 2 | Home Sweet Home | ||
| CH 3 | Fur Elise | ||
| CH 1 | Buzzer AB | bee bee bee bee | |
| CH 2 | Ding dong | ||
| CH 3 | bee ~ bee ~ bee | ||
3Body
◎ Highly durable aluminum housing is used and has excellent waterproofing and dustproofing effects.
◎ Convenient line connection with the terminal box installed at the bottom of the product
4External tone switch
◎ Change the tone with a switch attached to the outside.
5Protection net
◎ Protective net installed outside the grove to prevent damage to the grove due to impact. Available as optional option
6High Luminance Type
◎ High luminance type is available for excellent radiance effect
Model Specifications
| Ø125 | Ø150 |
|
|
| AUMS-R125
|
AUMS-R150
|
|
|
| AUMS-L125
|
AUMS-L150
|
 |
|
| AUMS-CL125
|
AUMS-125 SeriesAUMS-150 Series
AUMS-R125 / Bulb reflector rotating warning light & signal horn integrated
- Ø125mm marine heavy equipment light bulb reflector rotating warning light & signal horn integrated type
- There are 2 types depending on output: 25W / 35W
- Number of rotations: Randomly adjusted
- Color : Red (R) ● Yellow (Y) ● Green (G) ● Blue (B) ●
| MODEL | Voltage | Current | Tone | Volume | LED EA | Weight | Color |
|---|---|---|---|---|---|---|---|
| AUMS-R125-25W | AC110V | 0.21 (A) | Siren 3 sound Melody 3 sound Buzzer 3 sound |
Max. 115dB | 12V 15W | 4720 g | ●Red (R) ●Yellow (Y) ●Green (G) ●Blue (B) |
| AC220V | 0.12 (A) | ||||||
| DC12V | 1.50 (A) | 4153 g | |||||
| DC24V | 0.87 (A) | 24V 15W |
AUMS-L125 / Multi-functional LED warning light & signal horn integrated
- Ø125mm multi-functional warning light & signal horn integrated for heavy equipment on ships
- There are 2 types depending on output: 25W / 35W
- Two types of LED units: standard and high brightness
- Using a microchip, you can select 4 actions (Steady / Flashing / rotating / rotating-Flashing)
- Number of rotations: Randomly adjusted
- Color : Red (R) ● Yellow (Y) ● Green (G) ● Blue (B) ●
| MODEL | Voltage | Current | Tone | Volume | LED EA | Weight | Color |
|---|---|---|---|---|---|---|---|
| AUMS-L125-25W | AC110V | 0.17 (A) | Siren 3 Sound Melody 3 Sound Buzzer 3 Sound |
Max. 115dB | 54EA | 4250 g | ●Red (R) ●Yellow (Y) ●Green (G) ●Blue (B) |
| AC220V | 0.11 (A) | ||||||
| DC12V | 0.48 (A) | 3957 g | |||||
| DC24V | 0.45 (A) | 4165 g |
| MODEL | Voltage | Current | Tone | Volume | LED EA | Weight | Color |
|---|---|---|---|---|---|---|---|
| AUMS-L125H-25W | AC110V | 0.19 (A) | Siren 3 sound Melody 3 sound Buzzer 3 sound |
Max. 115dB | 90EA | 4270 g | ●Red (R) ●Yellow (Y) ●Green (G) ●Blue (B) |
| AC220V | 0.12 (A) | ||||||
| DC12V | 0.57 (A) | 3977 g | |||||
| DC24V | 0.55 (A) | 4185 g |
AUMS-CL125 / CAUTION LED flashing light & signal horn integrated
- Ø125 mm CAUTION LED strobe & signal horn integrated type for heavy equipment on ships
- There are 2 types depending on output: 25W / 35W
- Color : Red (R) ● Yellow (Y) ● Green (G) ● blue (B) ●
| MODEL | Voltage | Tone | Volume | Weight | Color |
|---|---|---|---|---|---|
| AUMS-CL125-25W | AC110V | Siren 3 sound Melody 3 sound buzzer 3 sound |
Max. 115dB | 4052 g | ●Red (R) ●Yellow (Y) ●Green (G) ●Blue (B) |
| AC220V | |||||
| DC12V | 3452 g | ||||
| DC24V |
AUMS-R150 / Bulb reflector rotating warning light & signal horn integrated type
- Ø150 mm marine heavy equipment bulb reflector rotating warning light & signal horn integrated type
- There are 2 types depending on output: 25W / 35W
- Color : Red (R) ● Yellow (Y) ● Green (G) ● Blue (B) ●
| MODEL | Voltage | Current | Tone | Volume | LED EA | Weight | Color |
|---|---|---|---|---|---|---|---|
| AUMS-R150-25W | AC110V | 0.21 (A) | Siren 3 sound Melody 3 sound Buzzer 3 sound |
Max. 115dB | 12V 15W | 5290 g | ●Red (R) ●Yellow (Y) ●Green (G) ●Blue (B) |
| AC220V | 0.12 (A) | ||||||
| DC12V | 1.50 (A) | 4723 g | |||||
| DC24V | 0.87 (A) | 24V 15W |
| MODEL | Voltage | Current | Tone | Volume | LED EA | Weight | Color |
|---|---|---|---|---|---|---|---|
| AUMS-R150H-25W | AC110V | 0.22 (A) | Siren 3 sound Melody 3 sound Buzzer 3 sound |
Max. 115dB | 12V 35W | 5316 g | ●Red (R) ●Yellow (Y) ●Green (G) ●Blue (B) |
| AC220V | 0.13 (A) | ||||||
| DC12V | 3.20 (A) | 4749 g | |||||
| DC24V | 1.74 (A) | 24V 35W |
AUMS-L150 / Multi-functional LED warning light & signal horn integrated
- Ø150mm Multi-functional LED warning light & signal horn integrated for heavy equipment on ships
- There are 2 types depending on output: 25W / 35W
- Two types of LED brightness: standard and high brightness.
- Color : Red (R) ● Yellow (Y) ● Green (G) ● Blue (B) ●
| MODEL | Voltage | Current | Tone | Volume | LED EA | Weight | Color |
|---|---|---|---|---|---|---|---|
| AUMS-L150-25W | AC110V | 0.17 (A) | Siren 3 sound Melody 3 sound Buzzer 3 sound |
Max. 115dB | 54EA | 4840 g | ●Red (R) ●Yellow (Y) ●Green (G) ●Blue (B) |
| AC220V | 0.11 (A) | ||||||
| DC12V | 0.48 (A) | 4547 g | |||||
| DC24V | 0.45 (A) | 4755 g |
| MODEL | Voltage | Current | Tone | Volume | LED EA | Weight | Color |
|---|---|---|---|---|---|---|---|
| AUMS-L150H-25W | AC110V | 0.19 (A) | Siren 3 sound Melody 3 sound Buzzer 3 sound |
Max. 115dB | 90EA | 4860 g | ●Red (R) ●Yellow (Y) ●Green (G) ●Blue (B) |
| AC220V | 0.12 (A) | ||||||
| DC12V | 0.57 (A) | 4567 g | |||||
| DC24V | 0.55 (A) | 4775 g |
Technical Diagram
