Connector Type Signal Tower Light
- Connector Type Signal Tower Light
- 1 basic sounds (buzzer) are provided
- DC voltage models , available from DC 12 to 24V
- Maximum 5 layers of LED Steady type
- Mounting accessories SV 06 pole Available exclusively
- Outdia : Ø58 / Maximum volume : 90dB (it may be measured lower than the actual decibel depending on the surroundings)
- Cable : M12 4PIN Cable ( Male ) / Cable length : 350mm
- The number of Cable : 1L: 1EA / 2L: 2EA / 3L: 2EA / 4L: 3EA / 5L: 3EA
- Material : Lens [GPPS], Body [ABS], Reflector [PC], Pole [aluminum]
- Operating Temperature : -25°C ~ +50°C (freezing free)
Product specifications
AUT-L /AUT-LF
- Ø58 Connector Type Signal Tower Light
- Built-in buzzer & Steady type by default
- Voltage DC 12 ~ 24V Only
- Buzzer function provided in addition to up to 5 colors of LED unit per Signal Tower.
- Mount using the SV06 pole only
- With M12 PIN Cable
- Color : (1L) Red (R) ● (2L) Yellow (Y) ● (3L) Green (G) ● (4L) Blue (B) ● (5L) White (w) ○

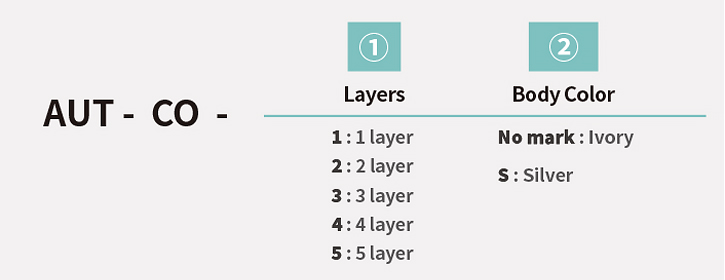

■ AUT-CO Connector Type Signal Tower Light
| Product Specifications | |||||||
| Model | Layer | Voltage | LED Current | Buzzer Current | Height | Weight(g) | Color |
AUT-CO |
1 L | DC 12V~24V | 77mA | 37mA | 305 mm | 390g | 1L (R) ● |
| 2 L | 143mA | 348 mm | 469g | 1L (R) ●2L (G) ● | |||
| 3 L | 220mA | 381mm | 504g | 1L (R) ●2L (G) ●3L (Y) ● | |||
| 4 L | 296mA | 424mm | 582g | 1L (R) ● 2L (G) ●3L (Y) ● 4L (B) ● | |||
| 5 L | 352mA | 467mm | 622g | 1L (R) ● 2L (G) ●3L (Y) ● 4L (B) ●5L (W) ○ | |||
