AUW – L100Multiple Function LED Warning Light
- Ø80mm, small Multiple Function LED Warning Light
- The multi-functional LED warning light uses a built-in microchip to select four operations: lighting, rotation, rotation-flashing, and flashing.
- Suitable for use in places with severe vibration or difficult to change light bulbs
- Excellent radiant effect using high luminance LED elements
- Semi-permanent lifespan using electronic circuit board
- Can be adjusted between AC110V ↔ 220V by adjusting pins on the inner board of the product
- Magnet attachment option and vehicle cigar jack option available (DC12V only)
- Audible Option : 3 Basic Sounds
- Maximum volume : Max. 80dB at 1m (may be measured lower than the actual decibel depending on the surrounding environment)
- Material : Globe [GPPS] / Body [ABS]
- Operating Temperature :-25℃ ~ +50℃
- Basic wire length: 300mm

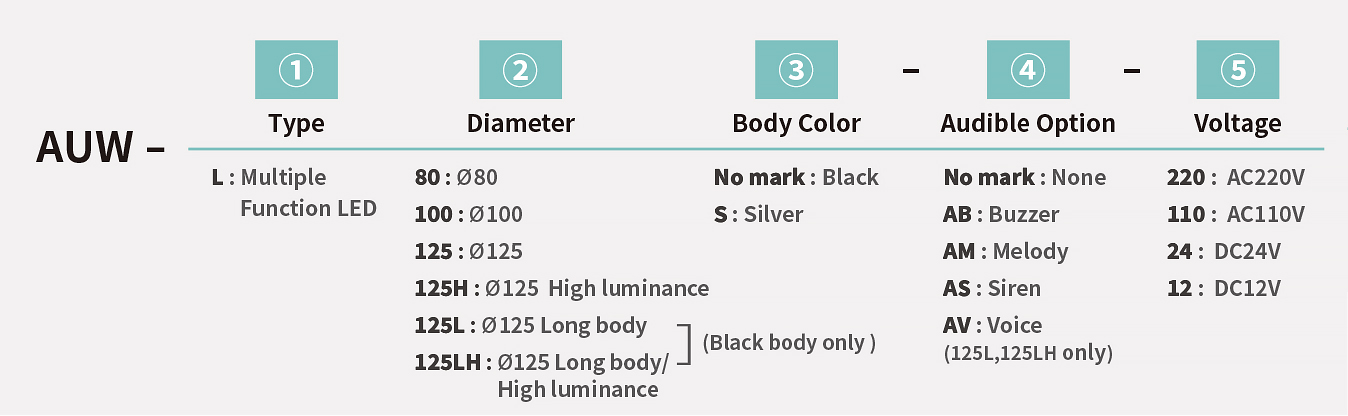

Nomenclature
Product specifications
AUW-L100
- Ø100mm, small Multiple Function LED Warning Light
- Magnet attachment option and vehicle cigar jack option available (DC12V only)
- Body Color : Black, Silver
- Material : Globe [GPPS] / Body [ABS]
- Color: RED (R) ● YELLOW (Y) ● GREEN (G) ● BLUE (B) ●
| MODEL | Rated Voltage | Current | LED EA | Weight(g) |
|---|---|---|---|---|
| AUW-L100 | AC 110V | 0.04 (A) | 54EA | 455 g |
| AC 220V | 0.02 (A) | 54EA | 455 g | |
| DC 12V | 0.14 (A) | 54EA | 269 g | |
| DC 24V | 0.2 (A) | 54EA | 269 g |
Audible Option specifications
- 3 Basic Sounds
- Output : Maximum power 5W
- Maximum volume : Max. 80dB at 1m (may be measured lower than the actual decibel depending on the surrounding environment)
| Buzzer sound | Timbre | |
|---|---|---|
| Buzzer AB | Basic sound | Beep~~~Beep |
| Additional sounds | beep ~ beep ~ beep | |
| Ding Dong Ding Dong | ||
| Melody AM | Basic sound | Fur Elise |
| Additional sounds | Home Sweet Home | |
| London Bridge is Falling Down | ||
| Siren AS | Basic sound | Urgent |
| Additional sounds | Emergency | |
| Fire | ||
How to Adjust the LED DIP Switches
Light Inner DIP switches
Operate 4 kinds of function by dip switches steady / flashing-revolving / flashing / revolving
| DIP / SW | 1 2 |
1 2 |
1 2 |
1 2 |
|---|---|---|---|---|
| ON | ■ |
■ |
■ ■ |
|
| OFF | ■ ■ |
■ |
■ |
|
| DIP |  |
 |
 |
 |
| Operation |  steady |
 Revolving |
 flashing-rotation |
 flashing |
Technical Diagram
Product wiring diagram
Vertical Bracket
| Available for warning lights in sizes Ø80, Ø100, and Ø125. (Bulb/LED type) |
|
