AUW – R180SBulb Revolving Warning Light
- Ø180mm, standard Bulb Revolving Warning Light
- Excellent radiant effect using special vacuum metallizing reflector
- Freely adjustable rotation speed with built-in volume switch
- Can be adjusted between AC110V ↔ 220V using changeover switch in the product
- Microchip-based structure is simple and not affected by external noise
- Strong against impact and excellent corrosion resistance thanks to the use of stainless steel (SUS304) body
- The default reflector is a double type.
- Material: Globe [GPPS], Body [SUS304]
- Operating Temperature : -25 ~ 50°C
- Basic wire length: 300mm

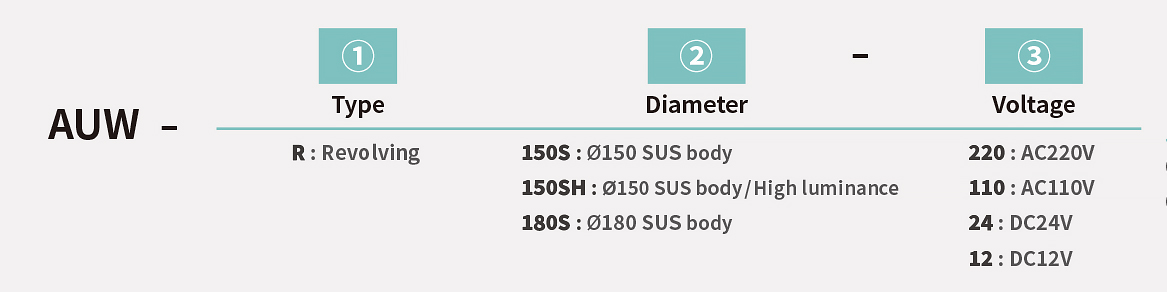

Nomenclature
Product specifications
AUW-R180S
- Ø180mm, standard Bulb Revolving Warning Light
- Basic double reflector type
- Color : Red (R) ● Yellow (Y) ● Green (G) ● Blue (B) ●
| MODEL | Rated voltage | current | Bulb | Weight (g) | Color |
|---|---|---|---|---|---|
| AUW-R180S | AC110V | 0.31 (A) | 12V 35W | 1832g | ● Red ● Yellow ● Green ● Blue |
| AC220V | 0.17 (A) | ||||
| DC12V | 2.87 (A) | 1266g | |||
| DC24V | 1.62 (A) | 24V 35W |
Technical Diagram
Product wiring diagram
