AUW-CL SeriesCaution LED Light
- Excellent visibility even in dark places by applying POWER LED
- Suitable for signal transmission in garbage trucks, forklifts, road and subway construction
- Steady / flashing / strobe 1, 2, 3, 4 functions can be selected according to the site.
- Excellent alertness due to the nature of the strobe
- Audible Option : 3 Basic Sounds
- Maximum volume : Max. 90dB at 1m (may be measured lower than the actual decibel depending on the surrounding environment)
- Material : Globe [GPPS], Body [ABS]
- Operating Temperature : -25 ~ 50℃

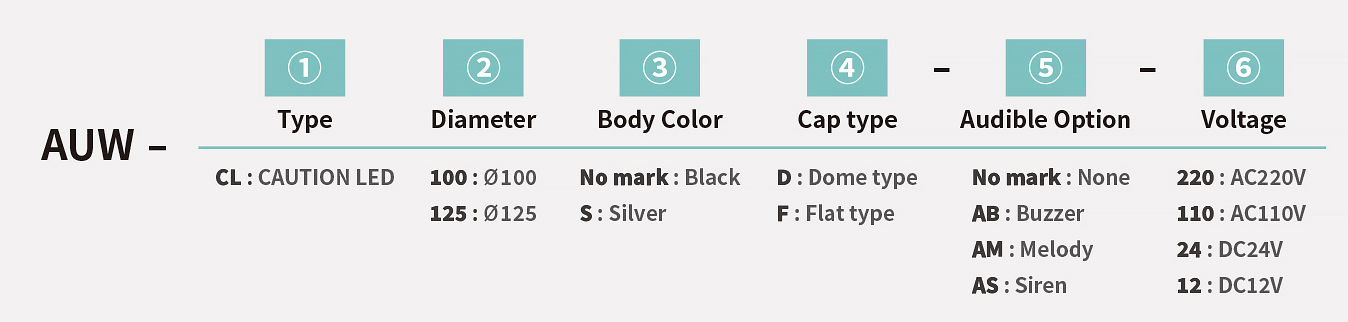

Icon Description and Product Configuration
| Icon Description | |||
| Light Source | Operation | Sound | |
|
|
|
|
Incandescent bulb
Revolving type
Product specifications
AUW-CL100AUW-CL125AUW-CL125L
AUW-CL100
- Outer diameter 100mm small LED light
| Model | Rated Voltage | Weight (g) | Color |
|---|---|---|---|
| AUW-CL100 | AC110V / 220V | 260g | ● Red ● Yellow ● Green ● Blue |
| DC12V / 24V | 240g |
AUW-CL125
- Outer diameter 125mm standard LED light
- Magnet attachment option and vehicle cigar jack option available (DC12 V only)
| Model | Rated Voltage | Weight (g) | Color |
|---|---|---|---|
| AUW-CL125 | AC110V / 220V | 328g | ● Red ● Yellow ● Green ● Blue |
| DC12V / 24V | 303g |
AUW-CL125L
- Outer diameter 125mm long body standard LED light
| Model | Rated Voltage | Weight (g) | Color |
|---|---|---|---|
| AUW-CL125L | AC110V / 220V | 467g | ● Red ● Yellow ● Green ● Blue |
| DC12V / 24V | 442g |
Audible Option specifications
- 3 Basic Sound
- Output : Maximum power 5W
- Maximum volume : Max. 90dB at 1m
| Buzzer sound | Timbre | |
|---|---|---|
| Buzzer AB | Basic sound | Beep~~~Beep |
| Additional sounds | beep ~ beep ~ beep | |
| Ding Dong Ding Dong | ||
| Melody AM | Basic sound | Fur Elise |
| Additional sounds | Home Sweet Home | |
| London Bridge is Falling Down | ||
| Siren AS | Basic sound | Urgent |
| Additional sounds | Emergency | |
| Fire | ||
