LED Steady / Flashing Type

LED Steady / Flashing Type Warning Light

Ø60mm LED Steady/Flashing Type Warning Light
Applicable in places with high vibration or where it is hard to replace
Semi-permanent lifespan using electronic circuit board
No embedded buzzer
Material: Globe [GPPS] / Body[ABS] / Reflector[PC]
Operating Temperature : -25℃ ~ +50℃

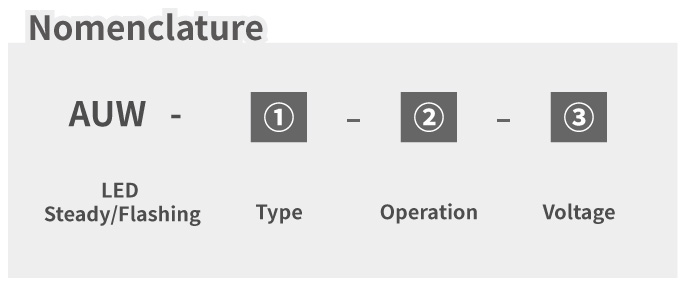

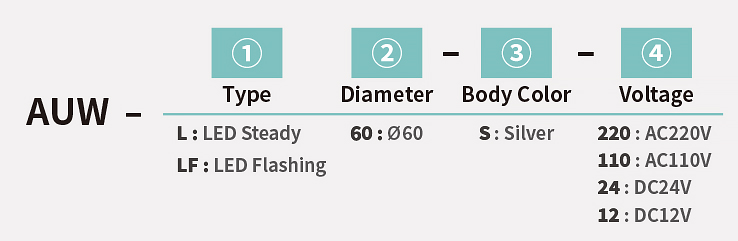

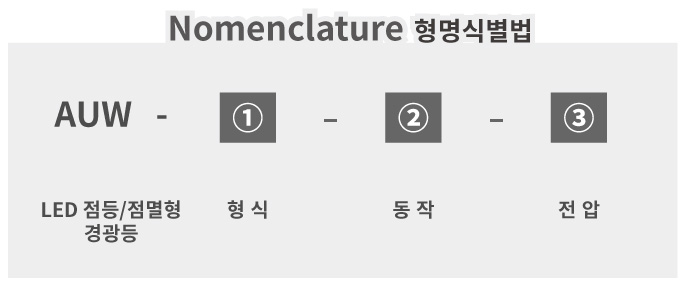

Nomenclature

① Type

L60 : Ø60
② Operation

B : Steady

BF : Flashing
③ Voltage

110 : AC110V

220 : AC220V

12 : DC12V

24 : DC24V

Icon Description and Product Configuration

Icon Description

Light Source Operation Sound Option

Incandescent bulb

LED Lamp

Steady type

Flashing type

Revolving type

Maximum volume

Buzzer

Siren sound

Melody

Voice

Magnet mounted type

High luminance

Protective net

LED Bulb Steady/Flashing Type Warning Light

Ø60

Steady Flashing

AUW-L60B AUW-L60BF

Specification by model

AUW-L60B / AUW-L60BF

Ø60mm small LED steady/ﬂashing type Warning Light

Color : Red (R) ● Yellow (Y) ● Green (G) ● Blue (B) ●

MODEL Rated voltage Current LED EA Weight

AUW-L60B/BF AC110V 0.01 (A) 16EA 157 g

AC220V 0.02 (A) 16EA 157 g

DC12V 0.09 (A) 16EA 129 g

DC24V 0.15 (A) 16EA 129 g

Technical Diagram

Icon Description
Light Source	Operation	Sound	Option
Incandescent bulb LED Lamp	Steady type Flashing type Revolving type	Maximum volume Buzzer Siren sound Melody Voice	Magnet mounted type High luminance Protective net

LED Bulb Steady/Flashing Type Warning Light
Ø60
Steady	Flashing
AUW-L60B	AUW-L60BF

MODEL	Rated voltage	Current	LED EA	Weight
AUW-L60B/BF	AC110V	0.01 (A)	16EA	157 g
	AC220V	0.02 (A)	16EA	157 g
	DC12V	0.09 (A)	16EA	129 g
	DC24V	0.15 (A)	16EA	129 g
