AUW – B / BFBulb Steady / Flashing Warning Light
- Outer diameter 80 mm / 100 mm small light bulb Steady / Flashing warning light
- A steady / flashing indicating lamp with a relatively simple inner structure that is easy to maintain
- Can be used to indicate device malfunction, material supply & stop signals, and signal transmission in automated line
- No buzzer functions
- Material: Globe [GPPS], Body [ABS]
- Operating Temperature: -25 ~ 50°C
- Basic wire length: 300mm

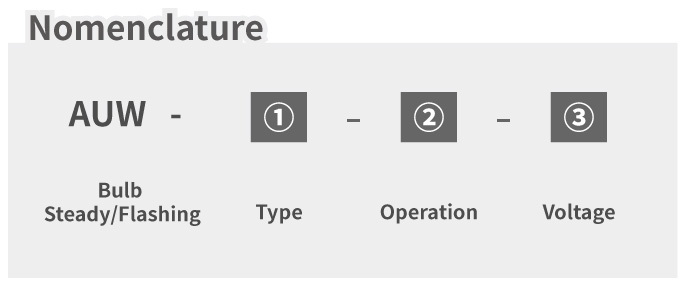

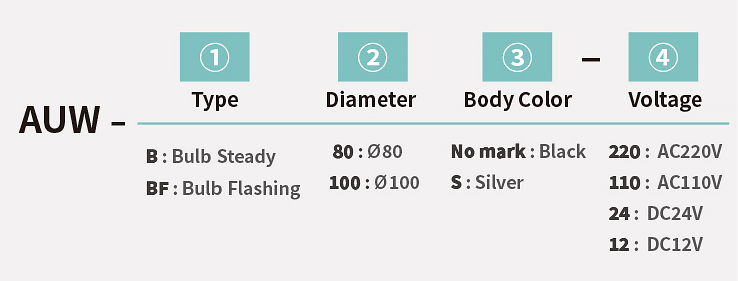

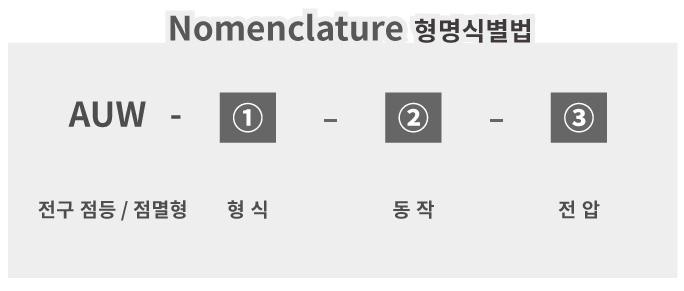

Nomenclature
Icon Description and Product Configuration
| Icon Description | |||
| Light Source | Operation | Sound | Option |
|
|
|
|
Incandescent bulb
LED Lamp
Revolving type
Strobe (Flash) type
Maximum volume
Buzzer
Siren sound
Melody
Voice
Magnet mounted type
High luminance
Protective net | Bulb Style Small Steady/Flashing Type Warning Light | |||
| Ø80 | Ø100 | ||
| Steady type | Flashing type | Steady type | Flashing type |
AUW-B80  |
AUW-BF80  |
AUW-B100 |
AUW-BF100 |
|
|
|
|
Specification by model
<strong>AUW-B/BF80</strong><strong>AUW-B/BF100</strong>
AUW-B80 / AUW-BF80
- Ø80mm, small bulb steady/flashing type warning Light
- Color : Red (R) ● Yellow (Y) ● Green (G) ● Blue (B) ●
| MODEL | Rated voltage | Current consumption | Bulb | Weight |
|---|---|---|---|---|
| AUW-B80 Steady type |
AC 110V | 0.07 (A) | 110V 10W | 200 g |
| AC 220V | 0.05 (A) | 220V 10W | 200 g | |
| DC 12V | 0.83 (A) | 12V 10W | 200 g | |
| DC 24V | 0.47 (A) | 24V 10W | 200 g | |
| AUW-BF80 Flashing type |
AC 110V | 0.07 (A) | 110V 10W | 209 g |
| AC 220V | 0.06 (A) | 220V 10W | 209 g | |
| DC 12V | 0.77 (A) | 12V 10W | 209 g | |
| DC 24V | 0.48 (A) | 24V 10W | 209 g |
Product Outside View
AUW-B100 / AUW-BF100
- Φ 100mm, small bulb steady/flashing type warning Light
- Color : Red (R) ● Yellow (Y) ● Green (G) ● Blue (B) ●
| MODEL | Rated voltage | Current consumption | Bulb | Weight |
|---|---|---|---|---|
| AUW-B100 | AC 110V | 0.06 (A) | 110V 10W | 327 g |
| AC 220V | 0.03 (A) | 220V 10W | 327 g | |
| DC 12V | 0.28 (A) | 12V 10W | 327 g | |
| DC 24V | 0.26 (A) | 24V 10W | 327 g | |
| AUW-BF100 | AC 110V | 0.07 (A) | 110V 10W | 336 g |
| AC 220V | 0.06 (A) | 220V 10W | 336 g | |
| DC 12V | 0.77 (A) | 12V 10W | 336 g | |
| DC 24V | 0.48 (A) | 24V 10W | 336 g |
Product Outside View
Product wiring diagram
Vertical braguette
| Available for warning lights in sizes Ø80, Ø100, and Ø125. (Bulb/LED type) |
|
