AUT-U SeriesØ58 USB Signal Tower Light

View Catalog
  • Signal Tower connected to USB port and controlled by programs on PC
  • All signals and power are supplied together through a single USB cable (voltage DC5V)
  • Can be used on a host that support USB 1.1 or higher
  • Can be utilized for a range of purposes as a regular PC accessory
  • Basic buzzer is embedded along with up to 5 layers and 5 colors of LED unit per a Signal Tower depending on the model
  • Selectable mounting pole (length, type) (default SH20)
  • Magnet mounted type is available with the optional horizontal pole (SH)
  • External diameter : Ø58 / Default LAN length : 3m / Max. 85dB
  • Material : Lens [GPPS], Body [ABS], Reflector [PC], Pole [Al]
  • Operating Temperature : -25°C ~ 50°C (freezing free)

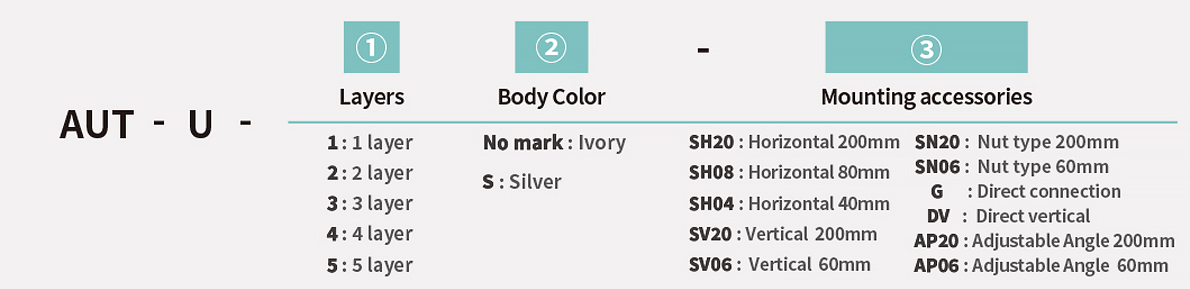

Nomenclature

Product specifications
  AUT-UØ58 USB Signal Tower Light
Model Layer Voltage Height (mm) Weight (g) Color
AUT-U 1 DC5V 410 380 (1 layer) Red
2 451.5 419 (1 layer) Red
(2 layer) Green
3 493 458 (1 layer) Red
(2 layer) Yellow
(3 layer) Green
4 534.5 497 (1 layer) Red
(2 layer) Yellow
(3 layer) Green
(4 layer) Blue
5 576 536 (1 layer) Red
(2 layer) Yellow
(3 layer) Green
(4 layer) Blue
(5 layer)○ White
Accessories

  • The direct vertical type is available in the case of the direct (G) type
  • In the case of the horizontal rod type, a magnet can be attached to the bottom
Horizontal (SH) Vertical (SV) Direct connection (G) Direct vertical (DV) Adjusting the angle (AP)
Pole length : 200mm ( SH20 )
Pole length : 80mm ( SH08 )
Pole length : 40mm ( SH04 )
Pole length : 200mm ( SV20 )
Pole length : 60mm ( SV06 )
Pole length : 200mm ( AP20 )
Pole length : 60mm ( AP06 )
Use
  • To inform of computer process status
  • To provide warning signals to many people at a long distance without passing through a monitor
  • For any warning message displayed on a computer
usb use
Other data
