AUT-DN SeriesDevice Net Signal Tower Light
- Signal Tower Light only for Device Net
- Direct connection to network without separated I/O terminal for device net
- Convenient to install and easy to maintain due to the smaller installation space and reduced wires
- Controlled by PLC device net master
- Set the address (MAC ID) and communication speed with built in DIP switch
- Supports all communication speeds (125kbps, 250kbps, 500kbps) in device net, and also supports automatic speed setting for convenient use.
- Maximum volume : 90dB
- Material : Lens [GPPS], Body [ABS], Reflector [PC]
- Operating Temperature : -25°C ~ +50°C (freezing free)
- Built-in buzzer, Steady type and DC24V by default
- Color moving by layer is possible
- Buzzer function provided in addition to up to 5 colors of LED unit per Signal Tower
- Mount using the exclusive bracket

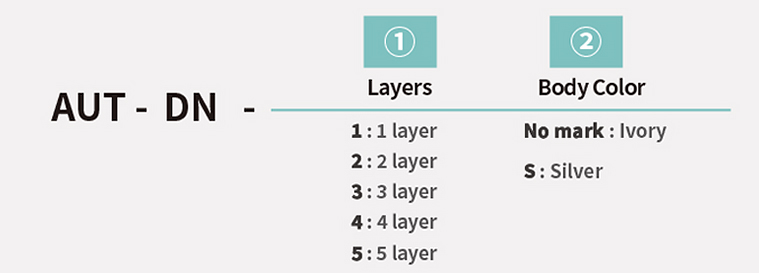

Nomenclature
Product specifications
AUT-DNDevice Net Signal Tower Light
| Model | Layer | Voltage | Height (mm) | Weight (g) | Color |
| AUT-DN | 1 | DC24 V | 210.5 | 368 | (1 layer)●Red |
| 2 | 252 | 405 |
(1 layer)●Red (2 layer)●Green |
||
| 3 | 293.5 | 442 |
(1 layer)●Red (2 layer)●Yellow (3 layer)●Green |
||
| 4 | 335 | 479 |
(1 layer)●Red (2 layer)●Yellow (3 layer)●Green (4 layer)●Blue |
||
| 5 | 376.5 | 516 |
(1 layer)●Red (2 layer)●Yellow (3 layer)●Green (4 layer)●Blue (5 layer)○ White |
Device Net?
Advantages of Device Net Signal tower
Direct connection to network with built-in device net communication function (power line and signal line are integrated into single cable )
- Saved space
- Reduced wiring
- Convenient installation & maintenance
Device net is a field bus for easy access among control devices such as PLC, PC, sensor, and actuator. Saves wiring cost, reduces the potential for wiring errors, is easy to maintain, and can be used for real-time control. It is CAN-based and strong on noise. As it allows mutual access among devices from different vendors, it enables more economical system establishment. Can remove a connected device from the network without stopping the whole network. An open style field that is used for a wide range of purposes.
Other data
