AUP-EWM Heavy Duty Electronic Horn
- Aluminum housing structure with excellent durability
- Suitable for outdoor, shipping, and heavy industry with completely waterproofed structure
- It is divided into three types according to the housing: A type, B type, and C type.
- Material: Aluminum housing + ABS resin Electronic Horn
- Operating Temperature: -25°C – +50°C
Product specifications

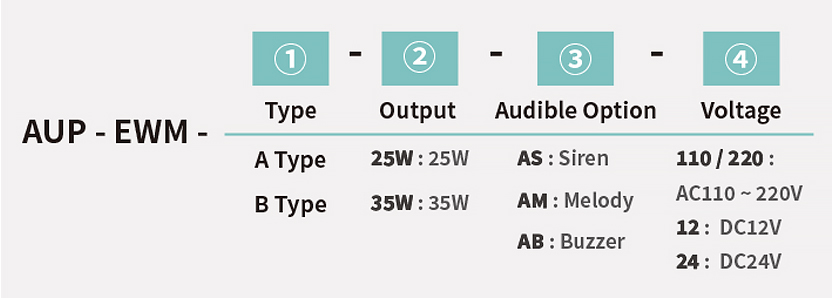

AUW-EWM-A
◎ A cable gland is equipped on the housing terminal box.
◎ 25W / 35W, two types of maximum outputs are available.
| MODEL | Embedded sound | Volume | Rated voltage
& Current |
Weight | ||
|---|---|---|---|---|---|---|
| Warning sound | CH | Basic timbre (3 sounds) | ||||
| AUP-EWM-A-25W AUP-EWM-A-35W |
Siren AS | A1 | Fire | 115dB | AC110V/220V compatible DC 12V DC 24V DC 48V |
AC : 3067g DC : 3040g |
| A2 | Emergency | |||||
| A3 | Urgent | |||||
| Melody AM | A1 | The Magic Flute | ||||
| A2 | Home Sweet Home | |||||
| A3 | Fur Elise | |||||
| Buzzer AB | A1 | bee bee bee bee | ||||
| A2 | Dingdong | |||||
| A3 | bee ~ bee ~ bee | |||||
AUW-EWM-B-25W
◎ The housing is equipped with a flexible connector.
◎ 25W of maximum output is available
| MODEL | Embedded sound | Volume | Rated voltage
& Current |
Weight | ||
|---|---|---|---|---|---|---|
| Warning sound | CH | Basic timbre (3 sounds) | ||||
| AUP-EWM-B-25W | Siren AS | A1 | Fire | 115dB | AC110V/220V compatible DC 12V DC 24V DC 48V |
AC : 2121g DC : 2101g |
| A2 | Emergency | |||||
| A3 | Urgent | |||||
| Melody AM | A1 | The Magic Flute | ||||
| A2 | Home Sweet Home | |||||
| A3 | Fur Elise | |||||
| Buzzer AB | A1 | bee bee bee bee | ||||
| A2 | Ding dong | |||||
| A3 | bee ~ bee ~ bee | |||||

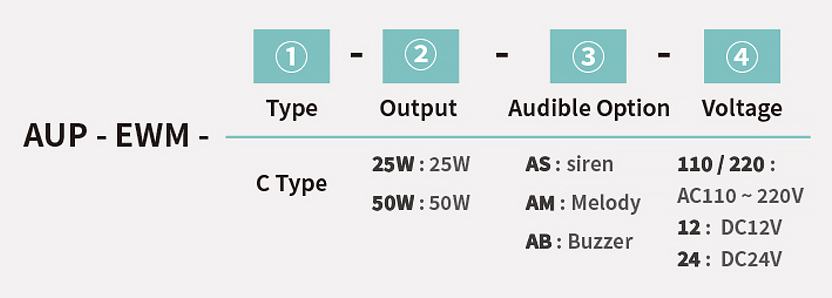

AUP-EMW-C 25W
◎ The housing is equipped with a flexible connector.
◎ One-way 25W of maximum output, with attached Electronic Horn
| MODEL | Embedded sound | Volume | Rated voltage
& Current |
Weight | ||
|---|---|---|---|---|---|---|
| Warning sound | CH | Basic timbre (3 sounds) | ||||
| AUP-EWH-C-25W | Siren AS | A1 | Fire | 115dB | AC110V/220V compatible DC 12V DC 24V DC 48V |
AC : 2796g DC : 2771g |
| A2 | Emergency | |||||
| A3 | Urgent | |||||
| Melody AM | A1 | The Magic Flute | ||||
| A2 | Home Sweet Home | |||||
| A3 | Fur Elise | |||||
| Buzzer AB | A1 | bee bee bee bee | ||||
| A2 | Ding dong | |||||
| A3 | bee ~ bee ~ bee | |||||
AUP-EWM-C-50W
◎ The housing is equipped with a flexible connector.
◎ Two-way 50W of maximum output, with attached Electronic Horn
◎ With high capacity, suitable for places with loud noise or that require left and right direction
| MODEL | Embedded sound | Volume | Rated voltage
& Current |
Weight | ||
|---|---|---|---|---|---|---|
| Warning sound | CH | Basic timbre (3 sounds) | ||||
| AUP-EWH-C-50W | Siren AS | A1 | Fire | 130dB | AC110V/220V compatible DC 12V DC 24V DC 48V |
AC : 3678g DC : 3628g |
| A2 | Emergency | |||||
| A3 | Urgent | |||||
| Melody AM | A1 | The Magic Flute | ||||
| A2 | Home Sweet Home | |||||
| A3 | Fur Elise | |||||
| Buzzer AB | A1 | bee bee bee bee | ||||
| A2 | Ding dong | |||||
| A3 | bee ~ bee ~ bee | |||||
