AUP-EWH Electronic Horn
- 3 siren sounds, 3 melody sounds, and 3 buzzer sounds can be selected according to the operator’s purpose.
- The device is equipped with a volume switch for easier volume adjustment.
- The device is equipped with a timbre switch for easier timbre change
- Light and solid manufacturing
- Buzzer volume : Max. 115~125dB
- Materials : ABS resin
- Operating Temperature : -25℃ ~ +50℃
Product specifications
- 25W/35W of maximum output is available (15W of maximum output can be ordered)
- 4 sounds, including melodies and Piano Sonata, and 4 sounds including buzzer and bee ~bee ~ sounds can be ordered.
25W
| MODEL | Embedded sound | Volume | Voltage & Current |
Weight(g) | ||
|---|---|---|---|---|---|---|
| Warning Sounds | CH | 3 Sounds | ||||
| AUP-EWH-25 | Siren AS | A1 | Fire.A-ANG | 115dB | AC110V/220V compatible DC 12V : 2.21A DC 24V : 1.02A DC 48V : 0.48A |
AC : 1174g DC : 1122g |
| A2 | Ambulance PI-PO | |||||
| A3 | Emergency WA-U | |||||
| Melody AM | A1 | The Magic Flute | ||||
| A2 | Home Sweet Home | |||||
| A3 | Fur Elise | |||||
| Buzzer AB | A1 | beep beep beep beep | ||||
| A2 | Ding Dong | |||||
| A3 | beep ~ beep ~ beep | |||||
35W
| MODEL | Embedded sound | Volume | Voltage
& Current |
Weight(g) | ||
|---|---|---|---|---|---|---|
| Warning Sounds | CH | 3 Sounds | ||||
| AUP-EWH-35 | Siren AS | A1 | Fire.A-ANG | 125dB | AC110V/220V compatible DC 12V : 2.44A DC 24V : 1.19A DC 48V : 0.59A |
AC : 1431g DC : 1379g |
| A2 | Ambulance PI-PO | |||||
| A3 | Emergency WA-U | |||||
| Melody AM | A1 | The Magic Flute | ||||
| A2 | Home Sweet Home | |||||
| A3 | Fur Elise | |||||
| Buzzer AB | A1 | beep beep beep beep | ||||
| A2 | Ding Dong | |||||
| A3 | beep ~ beep ~ beep | |||||

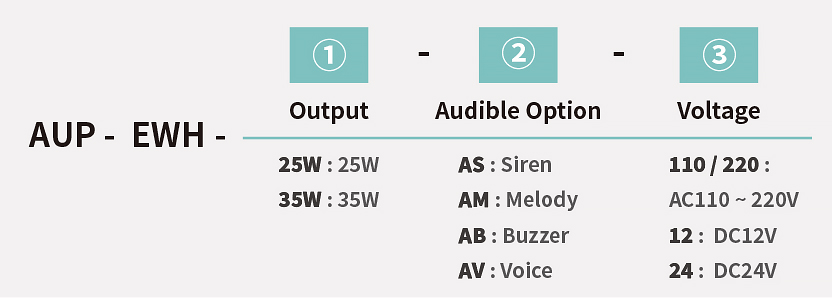

Technical Diagram
