Heavy Duty Industrial Warning Light

전구아이콘led 아이콘   Heavy Duty Industrial Warning Light

  View Catalog

Heavy duty industrial warning / Caution LED Warning Light in enclosed structure with excellent waterproofing and corrosion resistance
  • The body is aluminum housing structure with strong shock resistance and excellent corrosion resistance.
  • 2 types of housings depending on installation purpose
  • Suitable for outdoor, shipping, and heavy industry with completely waterproofed structure
  • Material : Body [AL 7 type A AC7A] / Ring [CU] / Globe [PS,PC(125mm LED)]
  • Standard body color : MUNSELL NO.7.5G/7.2

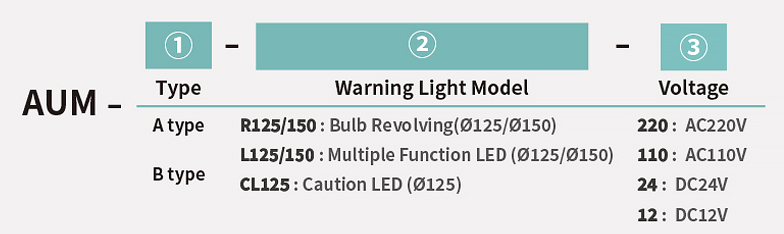

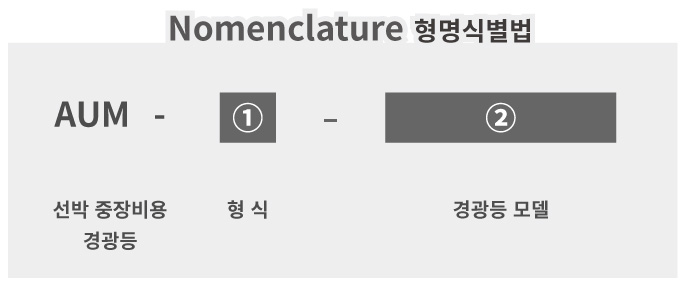

Nomenclature
  • ① Type
    • A type
    • B type
  • ② Warning Light Model
    • R125 150 : Bulb Revolving(Ø125/ Ø150)
    • L125 150 : Multiple Function LED (Ø125/Ø150)
    • CL125 150 : Caution LED(Ø125/Ø150)



Icon Description and Product Diagram
AUM Series Common Specifications
AUM 타입
1 Housing

◎ 2 housing types depending on use A / B

AUM-A

◎ Basic housing model without attached terminal box
◎ Suitable for installation in narrow spaces or on ceilings

AUM-B

◎ Housing is equipped with a terminal box and 2 cable glands.
◎ Convenient line connection with the terminal box

2 A Variety of Selectable Light Source & Function Combinations
Light Source & Function Globe Outer Diameter
Bulb Revolving

125mm


150mm
Multiple Function LED
steady /flashing-revolving /flashing /revolving
Caution LED
3 Protective Net
보호망

◎ Protective net is installed at the outside of the globe to prevent damage by shock (Protective net is optional)

4 Fully enclosed structure

◎ Excellent sealing because respective areas implement waterproof and dust-proof structures, suitable for shipping and heavy industry

방수
5 Cable entry

◎ Basic cable gland is equipped for A type, while 2 cable glands are in the basic terminal box for B type.

케이블 인입구
Heavy Duty Industrial Warning Light/ Caution LED Warning Light
A TYPE B TYPE
AUM-A-125 AUM-B-125 AUM-A-150 AUM-B-150
AUM-A-R125

전구아이콘회전

 AUM-B-R125

전구아이콘회전

 AUM-A-R150

전구아이콘회전

 AUM-B-R150

전구아이콘회전
AUM-A-L125

led아이콘회전회전회전고휘도

 AUM-B-L125

led아이콘점등점멸회전고휘도

 AUM-A-L150

led아이콘점등점멸회전고휘도

 AUM-B-L150

led아이콘점등점멸회전고휘도
AUM-A-CL125

led아이콘

 AUM-B-CL125

led아이콘

 AUM-A-CL150

led아이콘

 AUM-B-CL150

led아이콘



Model Specifications
AUM-A-125AUM-B-125AUM-A-150AUM-B-150
전구아이콘 AUM-A-R125 [ Bulb Revolving ]
  • Ø125mm, heavy duty industrial Bulb Revolving Warning Light
  • Rev. count : 90 ~ 100
  • Color :  Red (R) ●   Yellow (Y) ●   Green (G) ●   Blue (B) ●
  • Specifications : 회전
MODEL Rated voltage Current consumption Bulb Weight
AUM-A-R125 AC 110V 0.18 (A) 12V 15W 1687 g
AC 220V 0.09 (A) 12V 15W 1687 g
DC 12V 1.4 (A) 12V 15W 1125 g
DC 24V 0.7 (A) 24V 15W 1125 g
DC 48V 0.38 (A) 48V 15W 1170 g
led 아이콘 AUM-A-L125 [ Multiple Function LED ]
  • Ø125mm, heavy duty industrial Multiple Function LED Warning Light
  • 2 types of LED brightness: standard and high luminance
  • Rev. count: Randomly controlled
  • Color :  Red (R) ●   Orange (O) ●   Green (G) ●   Blue (B) ●
  • Specifications :점등점멸회전고휘도
MODEL Rated voltage Current consumption LED EA Weight
AUM-A-L125 AC 110V 0.03 (A) 54EA 1337 g
AC 220V 0.06 (A) 54EA 1337 g
DC 12V 0.11 (A) 54EA 1047 g
DC 24V 0.23 (A) 54EA 1055 g
DC 48V 0.38 (A) 54EA 1070 g
MODEL Rated voltage Current consumption LED EA Weight
AUM-A-L125
High luminance		 AC 110V 0.05 (A) 90EA 1360 g
AC 220V 0.1 (A) 90EA 1360 g
DC 12V 0.19 (A) 90EA 1070 g
DC 24V 0.38 (A) 90EA 1078 g
DC 48V 0.66 (A) 90EA 1093 g
led 아이콘 AUM-A-CL125 [ Caution LED ]
  • Ø125mm, heavy duty industrial Caution LED Warning Light
  • Color:  Red (R) ●   Yellow (Y) ●   Green (G) ●   Blue (B) ●
  • Specifications :점등
MODEL Rated voltage
AUM-A-CL125 AC 110V
AC 220V
DC 12V
DC 24V
Technical Diagram
AUM-A-125 도면
전구아이콘 AUM-B-R125 [ Bulb Revolving ]
  • Ø125mm, heavy duty industrial Bulb Revolving Warning Light
  • Rev. count : 90 ~ 100
  • Color :  Red (R) ●   Yellow (Y) ●   Green (G) ●   Blue (B) ●
  • Specifications : 회전
MODEL Rated voltage Current consumption Bulb Weight
AUM-B-R125 AC 110V 0.18 (A) 12V 15W 2220 g
AC 220V 0.09 (A) 12V 15W 2220 g
DC 12V 1.4 (A) 12V 15W 2220 g
DC 24V 0.7 (A) 24V 15W 1658 g
DC 48V 0.38 (A) 48V 15W 1703 g
led 아이콘 AUM-B-L125 [ Multiple Function LED ]
  • Ø125 mm, heavy duty industrial Multiple Function LED Warning Light
  • 2 types of LED brightness: standard and high luminance
  • Rev. count: Randomly controlled
  • Color :  Red (R) ●   Orange (O) ●   Green (G) ●   Blue (B) ●
  • Specifications :점등점멸회전고휘도
MODEL Rated voltage Current consumption LED EA Weight
AUM-B-L125 AC 110V 0.03 (A) 54EA 1877 g
AC 220V 0.06 (A) 54EA 1877 g
DC 12V 0.11 (A) 54EA 1683 g
DC 24V 0.23 (A) 54EA 1691 g
DC 48V 0.38 (A) 54EA 1706 g
MODEL Rated voltage Current consumption LED EA Weight
AUM-B-L125
High luminance		 AC 110V 0.05 (A) 90EA 1897 g
AC 220V 0.1 (A) 90EA 1897 g
DC 12V 0.19 (A) 90EA 1703 g
DC 24V 0.38 (A) 90EA 1711 g
DC 48V 0.66 (A) 90EA 1726 g
led 아이콘 AUM-B-CL125 [ Caution LED ]
  • Ø125mm, heavy duty industrial Caution LED Warning Light
  • Color :  Red (R) ●   Orange (O) ●   Green (G) ●   Blue (B) ●
MODEL Rated voltage
AUM-B-CL125 AC 110V
AC 220V
DC 12V
DC 24V

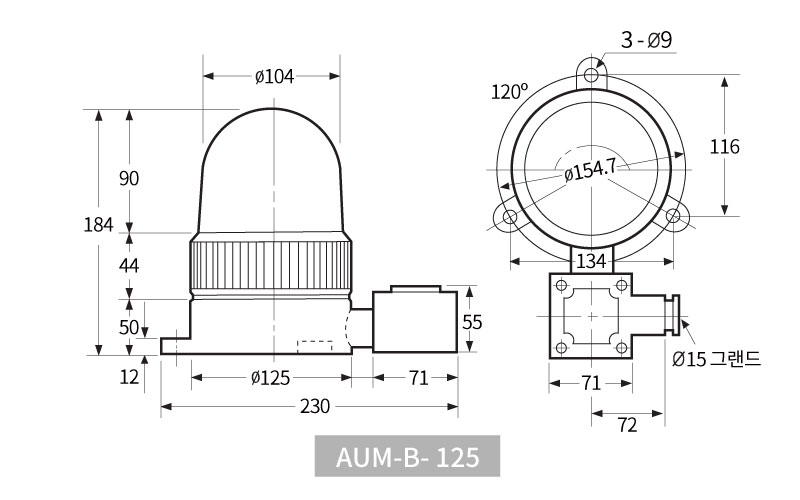

Technical Diagram
AUM-B-125 도면
전구아이콘 AUM-A-R150 [ Bulb Revolving ]
  • Ø150mm, heavy duty industrial Bulb Revolving Warning Light
  • 2 types of standard and high luminance
  • Rev. count : 90 ~ 100
  • Color :  Red (R) ●   Yellow (Y) ●   green (G) ●   blue (B) ●
  • Specifications : 회전
MODEL Rated voltage Current consumption Bulb Weight
AUM-A-R150 AC 110V 0.18 (A) 12V 15W 2974 g
AC 220V 0.09 (A) 12V 15W 2974 g
DC 12V 1.4 (A) 12V 15W 2407 g
DC 24V 0.7 (A) 24V 15W 2407 g
DC 48V 0.38 (A) 48V 15W 2452 g
MODEL Rated voltage Current consumption Bulb Weight
AUM-A-R150
High luminance		 AC 110V 0.3 (A) 12V 35W 3000g
AC 220V 0.18 (A) 12V 35W 3000g
DC 12V 3(A) 12V 35W 2433g
DC 24V 1.5 (A) 24V 35W 2433g
led 아이콘 AUM-A-L150 [ Multiple Function LED ]
  • Ø150mm, heavy duty industrial Multiple Function LED Warning Light
  • 2 types of LED brightness: standard and high luminance
  • Rev. count: Randomly controlled
  • Color :  Red (R) ●   Orange (O) ●   Green (G) ●   Blue (B) ●
  • Specifications :점등점멸회전고휘도
MODEL Rated voltage Current consumption LED EA Weight
AUM-A-L150 AC 110V 0.03 (A) 54EA 2150 g
AC 220V 0.06 (A) 54EA 2150 g
DC 12V 0.11 (A) 54EA 1858 g
DC 24V 0.23 (A) 54EA 1866 g
DC 48V 0.38 (A) 54EA 1881 g
MODEL Rated voltage Current consumption LED EA Weight
AUM-A-L150
High luminanc		 AC 110V 0.05 (A) 90EA 2170 g
AC 220V 0.1 (A) 90EA 2170 g
DC 12V 0.19 (A) 90EA 1878 g
DC 24V 0.38 (A) 90EA 1886 g
DC 48V 0.66 (A) 90EA 1901 g
led 아이콘 AUM-A-CL150 [ Caution LED ]
  • Ø150mm, heavy duty industrial Caution LED Warning Light
  • Color :  Red (R) ●   Orange (O) ●   Green (G) ●   Blue (B) ●
MODEL Rated voltage
AUM-A-CL150 AC 110V
AC 220V
DC 12V
DC 24V
Product Outside View
AUM-A-150 도면
전구아이콘 AUM-B-R150 [ Bulb Revolving ]
  • Ø150mm, heavy duty industrial Bulb Revolving Warning Light
  • Rev. count: 90 – 100
  • Color :  Red (R) ●   Yellow (Y) ●   Green (G) ●   Blue (B) ●
  • Specifications : 회전
MODEL Rated voltage Current consumption Bulb Weight
AUM-B-R150 AC 110V 0.18 (A) 12V 15W 3206 g
AC 220V 0.09 (A) 12V 15W 3206 g
DC 12V 1.4 (A) 12V 15W 2640 g
DC 24V 0.7 (A) 24V 15W 2640 g
DC 48V 0.38 (A) 48V 15W 2648 g
MODEL Rated voltage Current consumption Bulb Weight
AUM-B-R150
High luminance		 AC 110V 0.3 (A) 12V 35W 3232g
AC 220V 0.18 (A) 12V 35W 3232g
DC 12V 3 (A) 12V 35W 2666g
DC 24V 1.5 (A) 24V 35W 2666g
led 아이콘 AUM-B-L150 [ Multiple Function LED ]
  • Ø150mm, heavy duty industrial Multiple Function LED Warning Light
  • 2 types of LED brightness: standard and high luminance
  • Rev. count: Randomly controlled
  • Color :  Red (R) ●   Orange (O) ●   Green (G) ●   Blue (B) ●
  • Specifications :점등점멸회전고휘도
MODEL Rated voltage Current consumption LED EA Weight
AUM-B-L150 AC 110V 0.03 (A) 54EA 2902 g
AC 220V 0.06 (A) 54EA 2902 g
DC 12V 0.11 (A) 54EA 2610 g
DC 24V 0.23 (A) 54EA 2618 g
DC 48V 0.38 (A) 54EA 2633 g
MODEL Rated voltage Current consumption LED EA Weight
AUM-B-L150
High luminance		 AC 110V 0.05 (A) 90EA 2922g
AC 220V 0.1 (A) 90EA 2922 g
DC 12V 0.19 (A) 90EA 2630 g
DC 24V 0.38 (A) 90EA 2638 g
DC 48V 0.66 (A) 90EA 2653 g
led 아이콘 AUM-B-CL150 [ Caution LED ]
  • Ø150mm, heavy duty industrial Caution LED Warning Light
  • Color :  Red (R) ●   Orange (O) ●   Green (G) ●   Blue (B) ●
MODEL Rated voltage
AUM-B-CL150 AC 110V
AC 220V
DC 12V
DC 24V

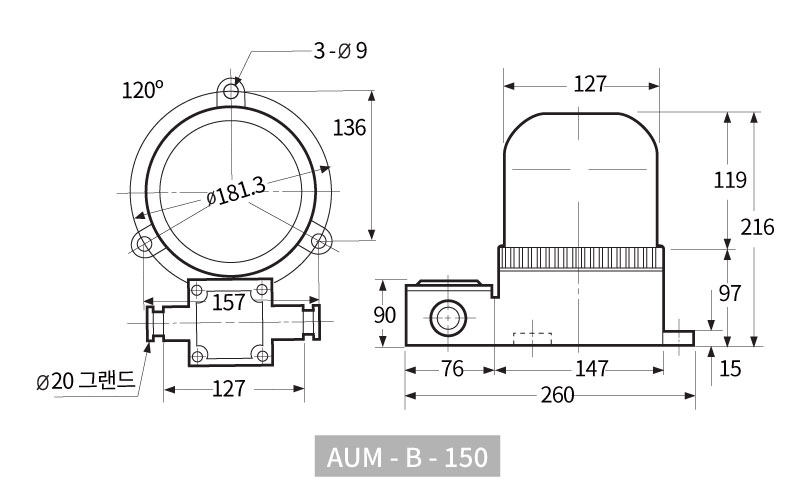

Technical Diagram
AUM-B-150 도면
