Machine Light
- LED Machine Light
- Including angle adjustment bracket
- Protection rating : IP65
- Code length : 3M
- Materials: aluminum [Body] / Light diffusion PC, Chemically tempered glass [Lense] / aluminum profile and die guest [Side plate ]
- Operating Temperature : -20℃ ~ +85℃
- Certificates :
The machine lights are made of aluminum profile and die guest, and the glass uses chemically strengthened glass or light diffusion PC that can withstand heat or shock. It is also effective for heat dissipation by utilizing the heat sink structure on the back of the product. Machines are used for various purposes such as workshops, product assembly/inspection lines, machine tools, and wide area lighting, and are waterproof with IP65 protection, so they can be used smoothly in machines with Oil

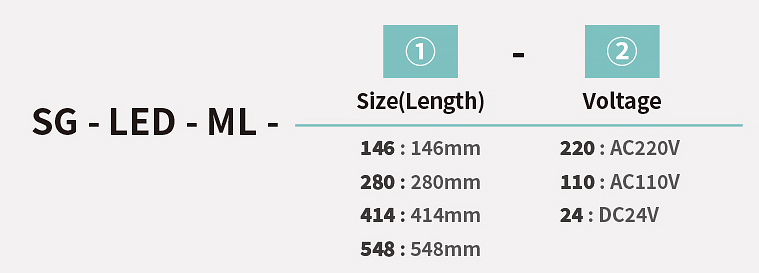

Nomenclature
- ① Product name : Machine Light
- ② Product Size(mm) : length
Product specifications
In order to prevent glare from the operator, the glass is frosted, and the irradiation angle can be adjusted to the desired angle as a bracket to adjust the irradiation angle is included.
- Acquired CE certification
- Input voltage : AC 100V ~ 240V (50/60 Hz)
- Input voltage : DC 24V
- LED Color : White
| Model | Size(mm) | Illuminance (at 1m) | Power Consumption (AC/DC) | Weight(g) |
| SG-LED-ML-146 | 65 X 50 X 146 mm | 165 lux / 650 lm | 7W / 12W | 770g |
| SG-LED-ML-280 | 65 X 50 X 280 mm | 280 lux / 1300 lm | 14W / 24W | 1200g |
| SG-LED-ML-414 | 65 X 50 X 414 mm | 460 lux / 1950 lm | 21W / 36W | 1570g |
| SG-LED-ML-548 | 65 X 50 X 548 mm | 615 lux / 2600 lm | 28W / 48W | 1800g |
Machine Light Brackets Mounting Diagram
