Power Distribution

  View Catalog

  • There are 2 layers / 3 layers / 4 layers and the terminal has 6P /10P
  • There is a capacity of 50A / 100A / 200A
  • There is a removable protective cover to prevent accidents such as electric shock in advance.
  • Busbar direction (left, right) position can be changed.
  • 35mm Din-rail mounting possible
  • Certificates : ROHS



The power distributor is a device that distributes the secondary power supplied from the main power source to the primary power source of each phase. It is a product that increases the efficiency of the installation work by improving the existing complex distribution method. Using a PC cover and a heat-resistant side plate, it is resistant to impact and heat, so you can use it safely.

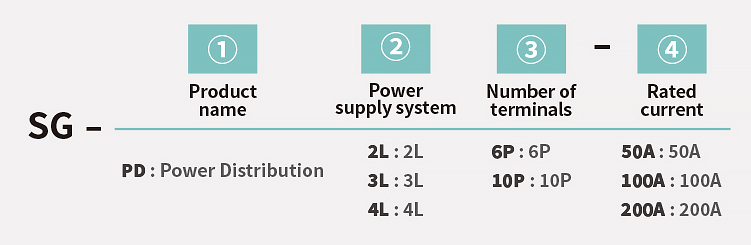

Nomenclature
  • Product name : Power Distribution
  • Power supply system : 2L / 3L / 4L
  • The Number of terminals : 6P / 10P
  • Rated current : 50A / 100A / 200A

Product specifications
  • Rated current : 50A / 100A / 200A
  • Rated voltage : 600V
  • Tolerance : ±1mm
  • Operating Temperature : -20℃ ~ 110℃
  • Materials : Side plate [mPPO] / Cover [PC]
    99.9% Copper + Tin plated busbar

2L
SG-PD2L06-50A

2L

SG-PD2L06-50A
  • Size(mm) : 119mm x 49mm x 45mm
  • Weight(g) : 90g
SG-PD2L06-100A

2L

SG-PD2L06-100A
  • Size(mm) : 132mm x 59mm x 48mm
  • Weight(g) :173g
SG-PD2L10-100

2L

SG-PD2L10-100A
  • Size(mm) : 180mm x 59mm x 48mm
  • Weight(g) : 240g
3L
SG-PD3L06-50A

2L

SG-PD3L06-50A
  • Size(mm) : 119mm x 70mm x 56mm
  • Weight(g) : 133g
SG-PD3L06-100A

3L

SG-PD3L06-100A
  • Size(mm) : 132mm x 85mm x 60mm
  • Weight(g) : 265g
SG-PD3L06-200A

3L

SG-PD3L06-200A
  • Size(mm) : 156mm x 103mm x 67mm
  • Weight(g) : 480g
  • ※ Available up to 250A
SG-PD3L10-100A

3L

SG-PD3L10-100A
  • Size(mm) : 180mm x 85mm x 60mm
  • Weight(g) : 357g
SG-PD3L10-200A

3L

SG-PD3L10-200A
  • Size(mm) : 211mm x 103mm x 67mm
  • Weight(g) : 650g
  • ※ Available up to 250A
4L
SG-PD4L06-100A

4L

SG-PD4L06-100A
  • Size(mm) : 132mm x 111mm x 72mm
  • Weight(g) : 355g
SG-PD4L10-100A

4L

SG-PD4L10-100A
  • Size(mm) : 180mm x 111mm x 72mm
  • Weight(g) : 480g
SG-PD4L10-200A

4L

SG-PD4L10-200A
  • Size(mm) : 211mm x 135mm x 81mm
  • Weight(g) : 878g
  • ※ Available up to 250A



Model Size(mm) Busbar size(mm) IN
Screw
OUT
Screw
Mounting Size & hole size(mm) Weight(g) Videos
SG-PD2L06-50A 119 X 49 X 45 2t X 10 M5 M4 108 X 39 /Ø4.2 90g View Video
SG-PD3L06-50A 119 X 70 X 56 2t X 10 M5 M4 108 X 60 /Ø4.2 133g View Video
SG-PD2L06-100A 132 X 59 X 48 3t X 15 M6 M5 117 X 49 /Ø4.2 173g View Video
SG-PD2L10-100A 180 X 59 X 48 3t X 15 M6 M5 166 X 49 /Ø4.2 240g View Video
SG-PD3L06-100A 132 X 85 X 60 3t X 15 M6 M5 117 X 75 /Ø4.2 265g View Video
SG-PD3L06-200A 156 X 103 X 67 4t X 20 M8 M6 130 X 93 /Ø4.2 480g View Video
SG-PD3L10-100A 180 X 85 X 60 3t X 15 M6 M5 166 X 75 /Ø4.2 357g View Video
SG-PD3L10-200A 211 X 103 X 67 4t X 20 M8 M6 186 X 93 /Ø4.2 650g View Video
SG-PD4L06-100A 132 X 111 X 72 3t X 15 M6 M5 117 X 101 /Ø4.2 355g View Video
SG-PD4L10-100A 180 X 111 X 72 3t X 15 M6 M5 166 X 101 /Ø4.2 480g View Video
SG-PD4L10-200A 211 X 135 X 81 4t X 20 M8 M6 186 X 123 /Ø4.2 878g View Video
