Made of aluminum profiles, it is lightweight and sturdy, has a variety of holes (Ø 12 / Ø 16 / Ø 22 / Ø 25 / Ø 30) to suit the purpose of the push button box, and it is also customizable.

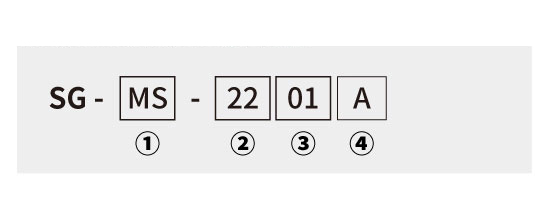

Nomenclature
- ① Product Name : Multi Switch Box
- ② Hole Size : Ø12 / Ø16 / Ø22 / Ø25 / Ø30 /
- ③ The Number of Holes : 1 hole / 2 holes / 3 holes / 4 holes / 5 holes / 6 holes
- ③ Product Type : M / MA / A / B / C / D / E
Product Feature
- Made of aluminum profile, lightweight and sturdy.
- There are 7 different types in total, and can be used for various purposes such as length, perforation, laser nameplate marking, etc. upon request from the customer.
- Connection and installation are possible by opening the box easily with only two bolts.
- Since the product has a basic hole, it can be easily used as a switch box without any separate process, and laser nameplate work is possible on the product itself.
Product specifications
- Color : Body – Gray (Anodizing) / Side Plate – Orange
- Tolerance : ± 1mm
- Thickness : 1.2T ~ 1.6T
- Operating Temperature : -20℃ ~ 70℃
- Materials : Aluminum Profile / ABS ( Side plate )
| Hole | Model | Size (mm) | |||
| Type | Width | Height | length | ||
| 1 hole |
| M | 50mm | 50mm | 70mm |
| MA | 50mm | 70mm | |||
|
A | 70mm | 50mm | 90mm | |
| B | 70mm | 70mm | |||
| C | 70mm | 90mm | |||
| D | 90mm | 70mm | |||
| E | 90mm | 90mm | |||
| 2 hole |
| M | 50mm | 50mm | 105mm |
| MA | 50mm | 70mm | |||
|
A | 70mm | 50mm | 145mm | |
| B | 70mm | 70mm | |||
| C | 70mm | 90mm | |||
| D | 90mm | 70mm | |||
| E | 90mm | 90mm | |||
| 3 hole |
| M | 50mm | 50mm | 140mm |
| MA | 50mm | 70mm | |||
|
A | 70mm | 50mm | 200mm | |
| B | 70mm | 70mm | |||
| C | 70mm | 90mm | |||
| D | 90mm | 70mm | |||
| E | 90mm | 90mm | |||
| 4 hole |
| M | 50mm | 50mm | 175mm |
| MA | 50mm | 70mm | |||
|
A | 70mm | 50mm | 255mm | |
| B | 70mm | 70mm | |||
| C | 70mm | 90mm | |||
| D | 90mm | 70mm | |||
| E | 90mm | 90mm | |||
| 5 hole |
| M | 50mm | 50mm | 210mm |
| MA | 50mm | 70mm | |||
|
A | 70mm | 50mm | 310mm | |
| B | 70mm | 70mm | |||
| C | 70mm | 90mm | |||
| D | 90mm | 70mm | |||
| E | 90mm | 90mm | |||
| 6 hole |
| M | 50mm | 50mm | 245mm |
| MA | 50mm | 70mm | |||
|
A | 70mm | 50mm | 365mm | |
| B | 70mm | 70mm | |||
| C | 70mm | 90mm | |||
| D | 90mm | 70mm | |||
| E | 90mm | 90mm | |||
