알루미늄 프로파일 박스는 알루미늄 프로파일로 제작되어 가볍고 견고하며 특수 제작 및 마킹등 소비자에게 맞춤 제작이 가능한 제품입니다.

Our aluminum profile boxes are lightweight, rugged and customizable up to 4M.It also enables special marking with round, square, and other special shape-tapping and laser marking as desired.This product is frequently used in various automation facilities and electronic machines, especially since it is designed to be used as a pushbutton box such as mechanical equipment.

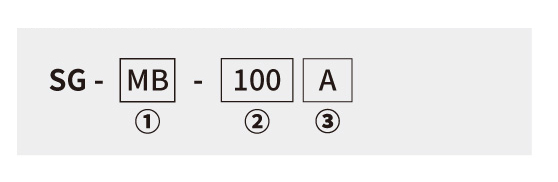

Nomenclature
  • Product name : Multi Box
  • Product length : 60 – 4000mm
  • Product Type : M / MA / A / B / C / D / E



Product feature
  • Made of aluminum profiles, it is light and durable.
  • There are a total of 7 different types and can be used for various purposes such as length, construction, and laser nameplate marking as requested by the customer.
  • box can be easily opened with two bolts. Wiring and mounting possible easily.
View Catalog



Product specifications
  • Color : Body – Gray / Side plate – Orange
  • Tolerance : ± 1mm
  • Thickness : 1.2T ~ 1.6T
  • Operating Temperature : -20℃ ~ 70℃
  • Materials : Aluminum Profile /abs ( Side plate )
Example of use
Example of use
Example of use
Example of use
Example of use

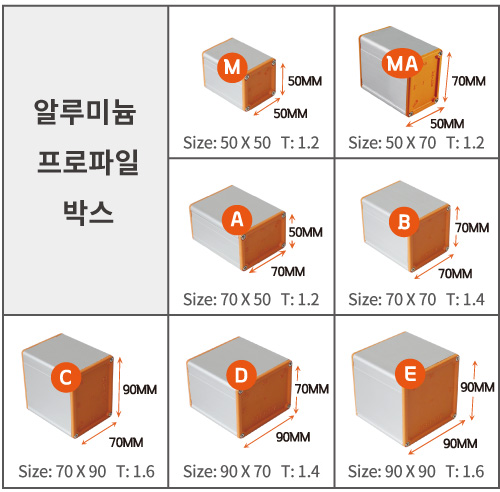

Product type
M Type

M

M Type
  • Size(mm) : 50(W)mm x 50(H)mm x length
  • Thickness : 1.2T
MA Type

MA

MA Type
  • Size(mm) : 50(W)mm x 70(H)mm x length
  • Thickness : 1.2T
A Type

A

A Type
  • Size(mm) : 70(W)mm x 50(H)mm x length
  • Thickness : 1.2T
b Type

B

B Type
  • Size(mm) : 70(W)mm x 70(H)mm x length
  • Thickness : 1.4T
c Type

C

C Type
  • Size(mm) : 70(W)mm x 90(H)mm x length
  • Thickness : 1.6T
D Type

D

D Type
  • Size(mm) : 90(W)mm x 70(H)mm x length
  • Thickness : 1.4T
E Type

E

E Type
  • Size(mm) : 90(W)mm x 90(H)mm x length
  • Thickness : 1.6T
Type_all
