The plastic push button box is made in three colors: red, yellow, and white. Plastic push button boxes are especially frequently used in emergency stop switches, and are safer to use with bright, vivid colors when used as emergency switches. It is designed to be durable and easy to install using PC materials. It is also oil-resistant and easy to clean, and the color is not discolored, making it safe and convenient to use.

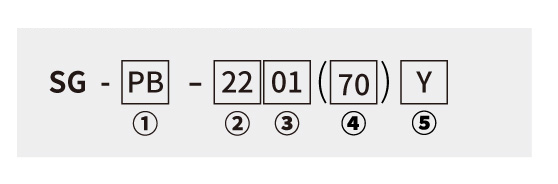

Nomenclature
- ① Product name : Plastic Push Button Box
- ② Hole size : Ø22 / Ø25 / Ø30
- ③ The number of holes : NO-hole / 1 hole / 2 holes / 3 holes / 4 holes
- ④ Height : 55mm / 70mm
- ⑤ Cover Color : RED / YELLOW / WHITE
Product feature
- There is a hole (Ø22 / Ø25 / Ø30) in the cover so that the switch can be installed without a separate process.
- Three colors for possible choices.
- UL approved product.
- Certificates :
Product Specifications
- Color : Base- Black / Cover- Red / Yellow / White
- Tolerance : ± 1mm
- Operating Temperature : -20℃ ~ 110℃
- Materials : Polycarbonate
※ There are only 1 and 2 hole of mini type.
MINI 1 hole
- Size(mm) : 51 x 60 x 45
- Cover Color :Yellow , White
- Hole size : Ø12 ,Ø16
- Weight(g) : 139g
MINI 2 hole
- Size(mm) : 51 x 95 x 45
- Cover Color :Yellow , White
- Hole size : : Ø12 ,Ø16
- Weight(g) : 157g
1hole
- Size(mm) :90x80x55/90x80x70
- Hole size :No-Hole/Ø22/Ø25/Ø30
- Cover Color :Red,Yellow,White
- Weight(g) :178g
2hole
- Size(mm) :135x80x55/135x80x70
- Hole size :No-Hole/Ø22/Ø25/Ø30
- Cover Color :Red,Yellow,White
- Weight(g) :231g
3hole
- Size(mm) :180x80x55/180x80x70
- Hole size :Ø22/Ø25/Ø30
- Cover Color :Red,Yellow,White
- Weight(g) :253g
4hole
- Size(mm) :220x80x55/220x80x70
- Hole size :Ø22/Ø25/Ø30
- Cover Color :Red,Yellow,White
- Weight(g) :303g
| Hole | Ø | Model | Size(mm) | Weight(g) |
| MINI 1hole | Ø12 | SG-PB-1201 | 51 X 60 X 45 | 139g |
| Ø16 | SG-PB-1601 | |||
| MINI 2hole | Ø12 | SG-PB-1202 | 50 X 95 X 45 | 157g |
| Ø16 | SG-PB-1602 | |||
| 1hole | Hole-free | SG-PB-0001 | 90 X 80 X 55 90 X 80 X 70 |
178g |
| Ø22 | SG-PB-2201 | |||
| Ø25 | SG-PB-2501 | |||
| Ø30 | SG-PB-3001 | |||
| 2hole | Hole-free | SG-PB-0002 | 135 X 80 X 55 135 X 80 X 70 |
231g |
| Ø22 | SG-PB-2202 | |||
| 25Φ | SG-PB-2502 | |||
| Ø30 | SG-PB-3002 | |||
| 3hole | Ø22 | SG-PB-2203 | 180 X 80 X 55 180 X 80 X 70 |
253g |
| Ø25 | SG-PB-2503 | |||
| Ø30 | SG-PB-3003 | |||
| 4hole | Ø22 | SG-PB-2204 | 220 X 80 X 55 220 X 80 X 70 |
303g |
| Ø25 | SG-PB-2504 | |||
| Ø30 | SG-PB-3004 |
