The heat-resistant aluminum terminal box uses a heat-resistant terminal stand in a box made of aluminum castings, making it more heat-resistant than other terminal boxes, allowing it to be used in higher. It is made of standard rating like the existing our aluminum terminal box, has excellent waterproof and dust proof effects, and is made of the same size, so it can be used in various industrial facilities that require heat-resistance.

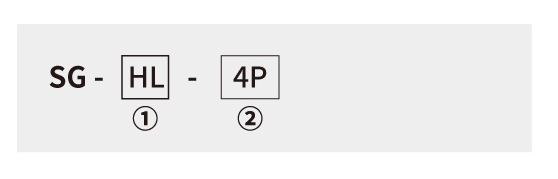

Nomenclature
SG-HL-4P
  • Product name : Heat-resisting Aluminum Terminal Box
  • The number of pin : 4-50 Pin



Product feature
hl_feature
  • Use of heat-resistant terminals that can be used up to 400°C temperatures.
  • Works in a more hot environment than the AL aluminum series.
  • Certificates : ROHS
View Catalog



Product specifications
  • Color : Gray / Terminal Block – Ivoy
  • Tolerance : ± 1mm
  • Thickness : 3.5T ~ 4T
  • Operating Temperature : -20℃ ~ 180℃
  • Protection rating : IP67 / NEMA 12X
  • Materials: Aluminum , heat-resistant material( Terminal Block )
Model Size(mm) Weight(g) Pictures
SG-HL-4P 61 X 71 X 48 239 View Pictures
SG-HL-6P 70 X 93 X 52 283 View Pictures
SG-HL-10P 70 X 128 X 52 374 View Pictures
SG-HL-12P 110 X 110 X 52 482 View Pictures
SG-HL-15P 70 X 172 X 55 529 View Pictures
SG-HL-20P 125 X 145 X 62 669 View Pictures
SG-HL-20PT 80 X 235 X 80 957 View Pictures
SG-HL-30P 125 X 190 X 80 1205 View Pictures
SG-HL-40P 160 X 260 X 90 1822 View Pictures
SG-HL-50P-S 160 X 260 X 90 2447 View Pictures
SG-HL-50P-L 230 X 330 X 120 5237 View Pictures
CAD Download

※ The aluminum terminal heat-resistant box drawing is the same as the basic aluminum box drawing.
