Earth Bar


view catalog
  • Earth bars are non-plated or tin-plated products made of 99.9% copper, and can be divided into various types: single file, double file, 3P to 30P. They are manufactured to support the safe grounding of electric facilities.
  • Materials: copper 99.9% / Tin-plated
  • Volts Size : M5(Single-file) / M4,M5(Double-file)
  • Certificates : ROHS

Earth bars are non-plated or tin-plated products made of 99.9% copper, and can be divided into various types: single file, double file, 3P to 30P. They are manufactured to support the safe grounding of electric facilities.

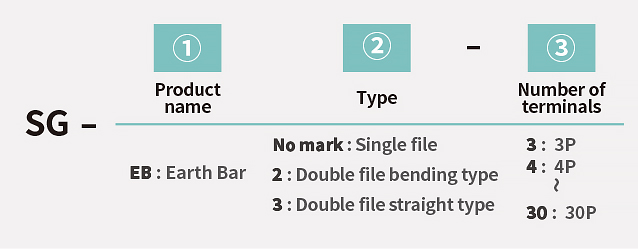

Nomenclature
  • Product name : Earth Bar
  • Type :
    – : Single file / 2: Double file bending type / 3: Double file straight type
  • The number of terminals : 3P ~ 30P

Product specifications

SG-EB

EB1 EB1 EB1
Model Size(mm) Weight(g)
A B C D E F(Width) t(Thickness)
SG-EB-3P 92 75 15 11 5.5 15 3t 435
SG-EB-4P 107 90 15 11 5.5 15 3t 505
SG-EB-5P 122 105 15 11 5.5 15 3t 595
SG-EB-6P 137 120 15 11 5.5 15 3t 675
SG-EB-7P 152 135 15 11 5.5 15 3t 760
SG-EB-8P 167 150 15 11 5.5 15 3t 830
SG-EB-10P 197 180 15 11 5.5 15 3t 970
SG-EB-12P 227 210 15 11 5.5 15 3t 1120
SG-EB-15P 272 255 15 11 5.5 15 3t 1360
SG-EB-20P 347 330 15 11 5.5 15 3t 1760

SG-EB2

EB2 EB2 EB2
Model Size(mm) Weight(g)
A B C D E F(Width) t(Thickness)
SG-EB2-6P 98.9 81.5 15 11 5.5 25 3t 810
SG-EB2-8P 113.9 96.5 15 11 5.5 25 3t 930
SG-EB2-10P 128.9 111.5 15 11 5.5 25 3t 1070
SG-EB2-12P 143.9 126.5 15 11 5.5 25 3t 1190
SG-EB2-16P 173.9 156.5 15 11 5.5 25 3t 1440
SG-EB2-20P 203.9 186.5 15 11 5.5 25 3t 1720
SG-EB2-24P 233.9 216.5 15 11 5.5 25 3t 1950
SG-EB2-30P 278.9 261.5 15 11 5.5 25 3t 2350

SG-EB3

EB3 EB3 EB3
Model Size(mm) Weight(g)
A B C D(ø) E(Width) t(Thickness)
SG-EB3-6P 98.9 81.5 15 5.5 25 3t 720
SG-EB3-8P 113.9 96.5 15 5.5 25 3t 860
SG-EB3-10P 128.9 111.5 15 5.5 25 3t 990
SG-EB3-12P 143.9 126.5 15 5.5 25 3t 1090
SG-EB3-16P 173.9 156.5 15 5.5 25 3t 1380
SG-EB3-20P 203.9 186.5 15 5.5 25 3t 1630
SG-EB3-24P 233.9 216.5 15 5.5 25 3t 1890
SG-EB3-30P 278.9 261.5 15 5.5 25 3t 2290
